China 38 AWG 0.1mm / 2 Strands Insulated Conductor Copper Litz Wire for sale

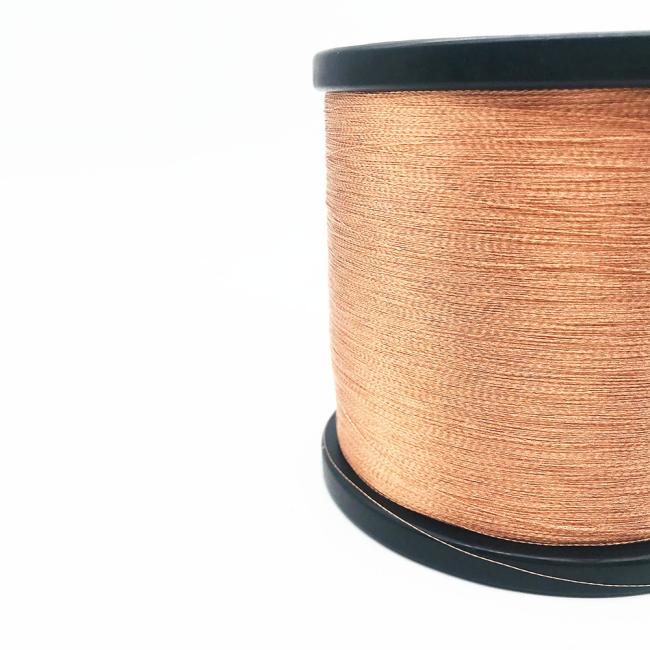

38 AWG 0.1mm / 2 Strands Insulated Conductor Copper Litz Wire

Price Negotiable
Price: Negotiation
MOQ: 5kg
Delivery Time: 2-15 days
Brand: Rvyuan
Product Description

38 AWG 0.1mm / 2 Strands Copper Wire Insulated Conductor Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming abundle). The strands must be insulated from each other.

We also customized silk covered litz wire, taped litz wire and profiled litz wire.



Characteristics
Technical requests
Test Results
Conclusion
Sample
Surface
Good
OK





OK
Breakdown Voltage
≥ 1.1 KV
2.4
Enamel Continuity
≤ 3 hole/6m
1
Outer diameter
0.107-0.125 mm
0.110-0.113
Inner diameter
0.1 mm±0.003
0.098-0.10mm
Conductor Resistance (20℃ Ω/Km)
≤1.191
1.101
Pitch
3.5±1 mm
OK
Solderability
390±5℃/ 4 s
OK
