Ei / Aiw 220 2.40mm*0.15mm Enamel Coated Copper Wire For Motor Winding

Price Negotiable

Price: Negotiation

MOQ: 10 Kilogram/Kilograms

Delivery Time: 2-15 days

Brand: Ruiyuan

Product Description

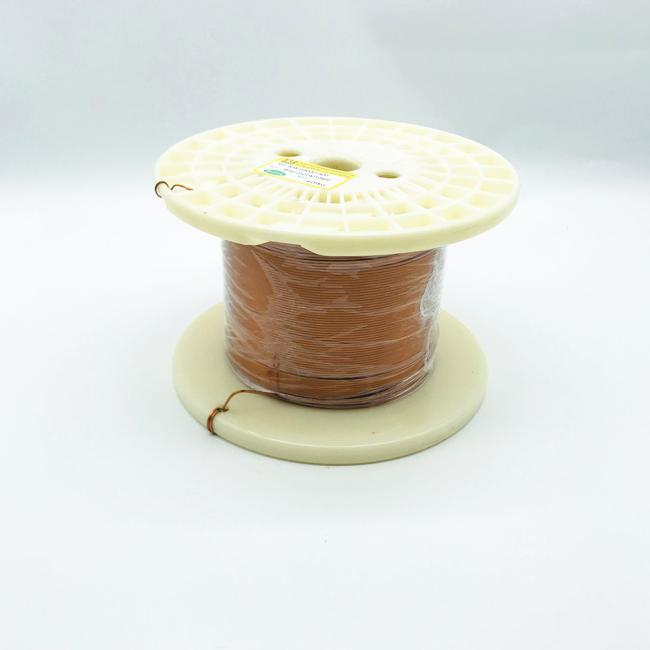

EI/AIW 220 2.40mm*0.15mm Rectangular Enameled Copper Wire For Motor Winding

We supply rectangular enameled copper wire, it' widely used in motor. The rectangular enameled copper wire can be customized the flat copper wire to your needs.Thickness range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.

Model:SFT-EI/AIWJ 220 size: 2.4mm*0.15mm
Item	Characteristics	Standard			Test Result
1	Apperance	Smooth Equality			Smooth Equality
2	Conductor Diameter	Width	2.4	±0.006	2.373
		Thickness	0.15	±0.009	0.155
3	Thickness Insulation	Width	≥0.020		0.032
		Thickness	≥0.030		0.040
4	Overall Diameter	Width	≤2.50		2.405
		Thickness	≤0.20		0.195
5	Pinhole	≤3hole/m			0
6	Elongation	≥30 %			45
7	Flexibility and Adherence	No crack			No crack
8	Conductor Resistance (Ω/km at 20℃)	≤52.94			48.28
9	Breakdown Voltage	≥0.7KV			1.5KV
10	Heat shock	No Crack			No Crack
