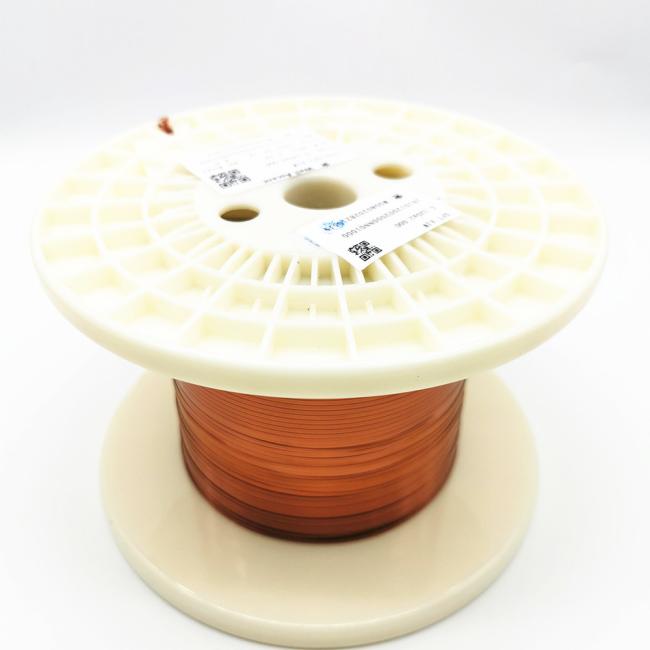

0.12mm Amide Imide 220 Degree Flat Enameled Copper Wire For Motor
Price:
Negotiation
MOQ:
10 Kilogram/Kilograms
Delivery Time:
2-15 days
Brand:
Ruiyuan
Product Description
Amide-imide 220 Degree Enameled Flat Copper Wire For Motor
We offer rectangualr enameled copper wire, thickness size range from 0.04mm to 1.8mm, width size range from 0.155 to 8mm, thickness to width ratio is 1:25.
| Test report | |||||||||||||||
| Model | SFT-AIW 0.2*2.0 | ||||||||||||||
| Item | Conductor dimension | Thickness of insulation | Overall dimension | Dielectric breakdown voltage | Pinhole | Conductor resistance | Elongation | Apperance | Flexibility | Adherence | Thermal shock | ||||
| Unit |
Thickness (mm) |
Width (mm) |
Thickness (mm) |
Width (mm) |
Thickness (mm) |
Width (mm) |
kv | PCS/m | Ω/km 20℃ | % | No dirt | No crack | No crack | No crack | |
| Spec | Ave | 0.120 | 2.000 | 0.025 | 0.025 | ||||||||||
| Max | 0.129 | 2.060 | 0.040 | 0.040 | 0.170 | 2.10 | 3 | 77.870 | 30 | ||||||
| Min | 0.111 | 1.940 | 0.010 | 0.010 | 0.700 | ||||||||||
| No.1 | 0.118 | 1.992 | 0.018 | 0.014 | 0.153 | 2.019 | 2.520 | 72.630 | 40 | Not to be scratched, nodirt | Good | Good | Good | ||
| NO.2 | 0.119 | 1.993 | 0.018 | 0.014 | 0.153 | 2.020 | 2.410 | ||||||||
| Ave | 0.119 | 1.993 | 0.018 | 0.014 | 0.154 | 2.020 | 2.238 | ||||||||
| Result | ok | ok | ok | ok | ok | ok | ok | ok | ok | ok | ok | ||||
