China Uew 155 / 180 Enameled Self Bonding Copper Wire for sale

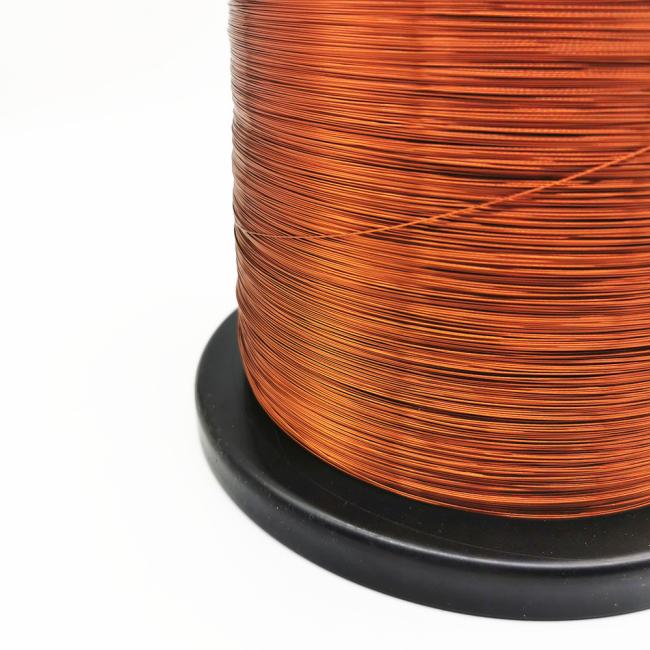

Uew 155 / 180 Enameled Self Bonding Copper Wire

Price Negotiable
Price: Negotiation
MOQ: 10 Kilogram/Kilograms
Delivery Time: 2-15 days
Brand: Ruiyuan
Product Description

UEW 155 / 180 Self bonding Enameled Copper Wire



Ultrafine self bonding enameled copper wire is a a copper conductor covered with two layers of coating self bonding which may be thermoplastic or thermosetting resins over an monolayer insulating copepr wire made of polyurethane,polyester or other insulation resins.



We expertly conbined diversified self bonding copper wires according to different kinds of insulating coatings and self bonding film.



Characteristics Technical requests Test Results
Sample 1 Sample 2 Sample 3
Bare Wire Diameter

0.120±0.002

 0.120 0.120 0.120
(Base coat) overall dimension Max.0.173 0.165 0.165 0.165
Insulation film thickness Min.0.041 0.045 0.045 0.046
Conductor resistance ≤ 1585Ω/km 1540 1540 1541
Resistance to softening℃ Continue 2 times pass 230℃/Good
Elongation ≥ 32 % 41 41 42
Breakdown voltage ≥ 4704V 9247
Adhesive Coating layer is good OK
Solder ability 390± 5℃ 2 Sec Smooth OK
