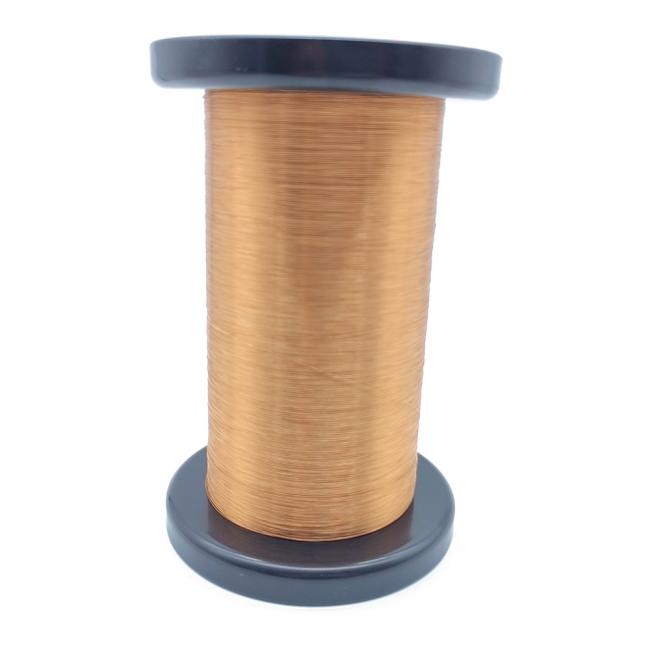

Fiw 4 0.10mm Enameled Magnet Wire 38 Gauge For Motor
Price:
Negotiation
MOQ:
10 Kilogram/Kilograms
Delivery Time:
2-15 days
Brand:
Ruiyuan
Product Description
FIW 4 0.10mm Copper Winding Wire FIW Wire For Motor
APPLICATION
- Transformer for measuring instrument
- For communication : High frequency coil for transformer, Coil for power source transformer
- For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
- Coil-micro-motor, electric fan, transformer & etc.
| Type & Diameter FIW4 0.100mm | ||||
| Test item | Standard Value | Reality value | ||
| Min. | Ave | Max. | ||
| Conductor dimensions(mm) | 0.100±0.002 | 0.100 | 0.100 | 0.100 |
| Overall dimensions(basecoat)(mm) | Max.0.144 | 0.140 | 0.141 | 0.141 |
| Insulation film thickness(mm) | Min.0.033 | 0.040 | 0.041 | 0.041 |
| Continuity of covering(pcs) | Max. 0 | Max. 0 | ||
| Adherence | Coating layer is good | OK | ||
| Breakdown Voltage(V) | Min.4464 | Min.8869 | ||
| Resistance to slftening(℃) | Continue 2 times pass | 230℃/Good | ||
| Solder test(390℃±5℃)(s) | Max. 2 | Max. 1.5 | ||
| Elongation(%) | Min.32 | 39 | 40 | 40 |
| Electrical Resistance/km | Max. 2286 | 2186 | 2186 | 2187 |
| Surface appearance | Smooth colory | Good | ||
