Factory / Warehouse Multi Tier Mezzanine Rack Attic Floor Space Saving
warehouse Multi Tier mezzanine rack attic floor for space saving
Steel platform
Introduction
This kind of garret can be installed or dismantled freely from one warehouse ground and distance between columns is less than 6000mm. Height of first level is around 3000mm, and H 2500mm for second and third floor level. Loading capacity of floor can be designed to be no more than 1000kg/ square meter.

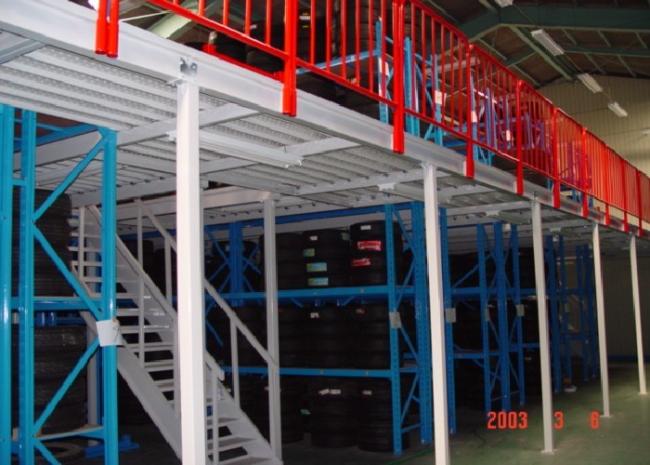

Steel platform is mainly consists of post, main beam, sub beam, floors, staircase and frame protector. It can be no on-stie welding. Different design can be provided in line with the loading capacity by selecting different material specification. It is of high intense and widely utilized.
§ Features of steel platform
◊ Lightening system can be added
◊ Floors can be designed in line with the actual conditions
◊ Space utilization has been increased by fully utilized the warehouse height
|
Product Name
|
Steel platform capacity within 1500KG per square meter
|
|
Material
|
Steel
|
|
Loading weight
|
250-1000kg per layer
|
|
Per layer Height
|
Adjustable
|
|
Number of plies
|
2-3 layers
|
|
Surface treatment
|
Electrostatic powder coating
|
|
Manufacturing technique
|
Cold/profiling
|
|
Used
|
Storage a wide variety of goods.
|
Specifications
warehouse multi-level mezzanine rack
Competitive price with high quality
Capacity: 200KG/Layer
Surface Treatment:Antirusting
Assembled warehouse multi-level mezzanine rack :
1.Surface Treatment:Acid-cleaning, Antirusting and Powder Coating.
2.Capacity: 50-250KG/Layer
3.beam:30x50mm
4.Upright:30x50mm
5.Joint parts: Side FrameX4pcs ,ShelfX6 ,BeamX6pcs, CrossbarX4pcs,ConnectbarX6pcs
6.Stardand colors: Blue,White,Light Red and so on.
7.Package :carton or air bubble film
8.Different size and colour are available.
9.Welcome your design with the specification.
