99.95% Purity Red Treated RA Rolled Copper Foil 18um 35um For FPC
Thickness 0.010mm or 10um double side red treated RA Rolled Copper foil For FPC flexible printed circuit board
Quickly details
| . Double side side treated in red with low profile |
| . Thickness: 0.010 mm,18um,35um,70um |
| . Width: Max 520 mm |
| . Length:Max 5000 M |
| . Alloy: T2 |
Features:
| 1. Treated copper foil in red |
| 2. Good Folding with properties suitable for FCCL |
| 3. Excellent etching performance,4,High peel strength |
Application and type:
. Casting and lamination type FCCL
. Super fine pattern FPC
. Chip on flex (COF) for LED

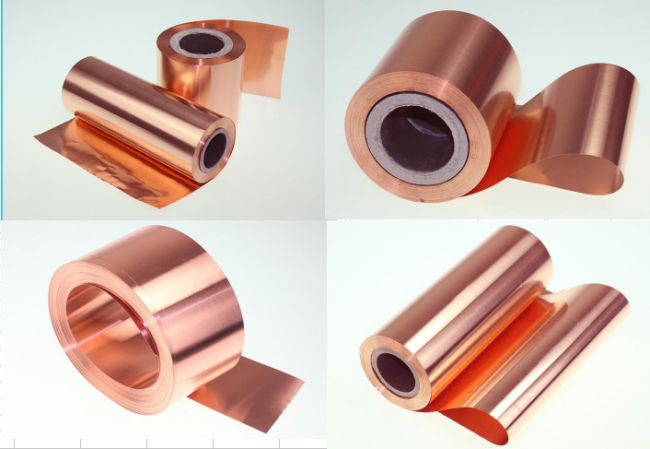

Product picture
FAQ:
Q1: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q2: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q3: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
All size RA Copper foil TDS for FCCL and FPC
| Thickness | 0.10/0.012/0.018/0.025/0.035mm | Width | ≤520mm | ||||
| Item | Unit |
Parameter |
|||||
| Thickness | MM | 0.010 | 0.012 | 0.018 | 0.025 | 0.035 | |
| Grade | － | C1100 | C1100 | C1100 | C1100 | C1100 | |
|
Copper content |
% | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | |
| Area Weight | g/m2 | 89±3 | 107±4 | 160±5 | 222±7 | 305±10 | |
| Roughness | (RA) | Um | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
| (RZ) | Um | ≤1.7 | ≤1.7 | ≤1.7 | ≤1.7 | ≤1.7 | |
|
Tensile Strength(MP) |
State normal | Mpa | ≥360 | ≥380 | ≥400 | ≥400 | ≥400 |
| State temper (180℃) | Mpa | ≥160 | ≥160 | ≥160 | ≥160 | ≥160 | |
|
Elongation(%) |
State normal | % | ≥1.0 | ≥1.2 | ≥1.4 | ≥1.4 | ≥1.4 |
| state temper l(180℃) | % | ≥7 | ≥8 | ≥10 | ≥10 | ≥10 | |
| MIT | State normal | Time | ≥2400 | ≥2400 | ≥2400 | ≥2400 | ≥2400 |
| state temper (180℃) | Time | ≥2400 | ≥2400 | ≥2400 | ≥2400 | ≥2400 | |
| Peel strength | N/mm | ≥0.8 | ≥1.0 | ≥1.3 | ≥1.35 | ≥1.4 | |
| High temperature oxidation resistance(180℃ 1hour) | － |
Qualified
|
Qualified
|
Qualified
|
Qualified
|
Qualified
|
|
Remark:Standard Width,520(±1)mm,May according to the customer request tailor.

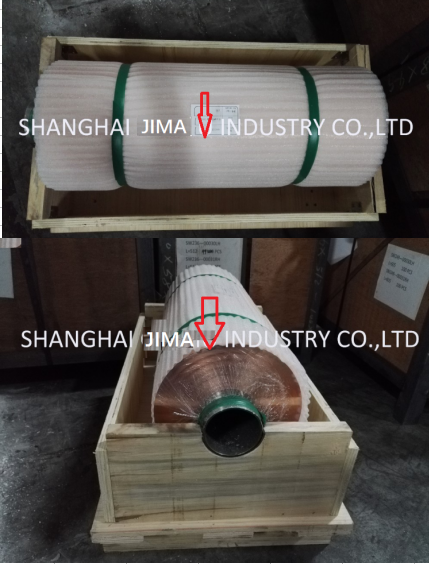

Packing detail:standard wooden box
