High Coarse Electrolytic Copper Foil 12micron - 70micron Thickness
High Coarse Electrodeposited ED Electrolytic Copper Foil 12micron - 70micron Thickness
Specifications:
- Thickness: 12micron-70micron
- Width: 5-520 mm
- Length: 500-5000 M
- Coil ID: 76 mm,152 mm
- Purity:99.8%
Features:
- The treated foil in red
- High peel strength
- Anti foil cracking by high elongation at elevated temperature.
- Eco-friendly products and processes
- Good etch ability
- Excellent adhesion to etching resist
Application:
- Positive temperature coefficient resistance
Compare between CA Copper foil and ED Copper Foil
- Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
- Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.
- Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.

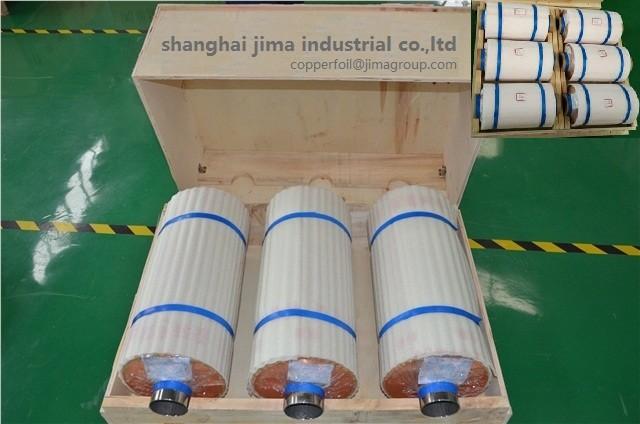

Package:wooden carton
FAQ:
Q1: What's your guarantee?
A1: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A2: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A3: The MOQ is 150 kg.
Typical properties of High coarse copper foil
| Classification | Unit | Requirement | Test Method | |||||
| Foil Designation | / | H | M | 1 | IPC-4562A | |||
| Nominal thickness | / | 1/2 OZ | 3/4 OZ | 1 OZ | IPC-4562A | |||
| Area Weight | g/㎡ | 150±5 | 228±8 | 285±10 |
IPC-TM-650 2.2.12.2 |
|||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
||
| Matte side(Rz) | um | ≤8 | ≤10 | ≤12 | ||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥220 | ≥235 | ≥280 |
IPC-TM-650 2.3.18 |
||
| Elongation |
R.T.(23℃)
|
％ | ≥2 | ≥3 | ≥3 |
IPC-TM-650 2.3.18 |
||
| Peel Strength(FR-4) | CEM-1 | N/mm | ≥1.5 | ≥1.7 | ≥2.0 |
IPC-TM-650 2.4.8 |
||
| PTC | ≥0.5 | ≥0.6 | ≥0.8 | |||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||
| Anti-oxidization | R.T.(23℃) | day | 180 or customize | / | ||||
| H.T.(200℃) | Minutes | 60 or customize | / | |||||
Standard Width,1290mm,May according to the customer request tailor.
