99.95% High Purity Lithium Ion Battery Copper Foil 9 Mic with None Pinholes
Price:
negotiation
MOQ:
100kg
Delivery Time:
5-15 days
Brand:
JIMA
Product Description

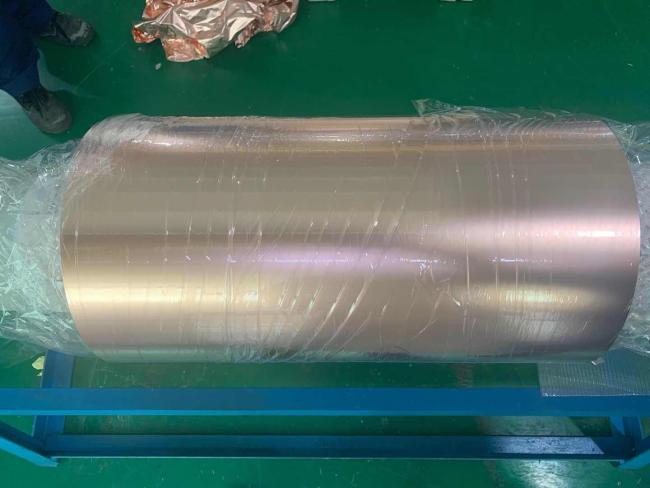

Double Shiny 9 Mic Electrolytic Copper Foil for Lithium Battery XEV Hybrid-electric Vehicle (HEV)
Specifications:
- Double shiny treatment in red.
- Thickness: 0.009mm
- Width: 1380 mm
- Length: 500-5000 M
- ID: 76 mm,152 mm
Li Ion Battery Anode Current Collector, Electrolytic Rolled Copper Foil
- Types: Double-shiny, Double-matte, One side shiny
- TThickness: 8micro, 9micro, 10micro,12micro, 15micro
Application:
- Lib: notebook PC, mobile phone.
- Electric vehicle(EV)

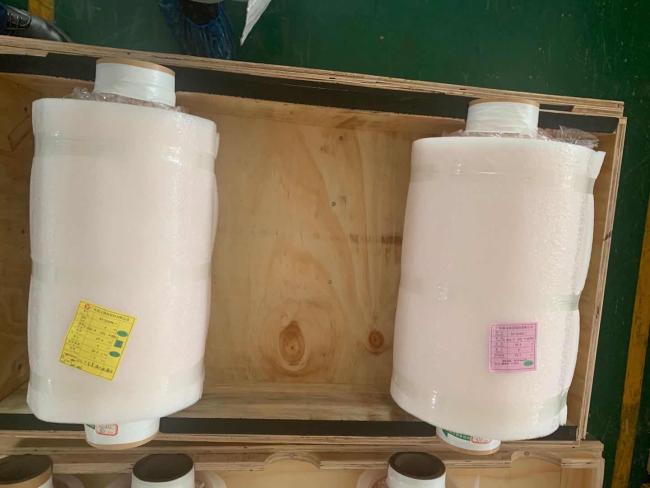

Package:Wooden box
FAQ:
Q1. Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3. What is your standard width?
A: 1380 and 1290mm
Typical Properties of Electrolytic ED Copper Foil Lithium Battery
| Classification | Unit | Requirement | Test Method | |||||||
| Foil Designation | / | IPC-4562A | ||||||||
| Nominal thickness | / | 6um | 7um | 8um | 9/10um | 12um | 15um | 20um | IPC-4562A | |
| Area Weight | g/㎡ | 54±1 | 63±1.25 | 72±1.5 | 89±1.8 | 107±2.2 | 133±2.8 | 178±3.6 |
IPC-TM-650 2.2.12.2 |
|
| Purity | ％ | ≥99.9 |
IPC-TM-650 2.3.15 |
|||||||
| Foil Profile | Shiny side (Ra) | um | 0.1-0.4 |
IPC-TM-650 2.3.17 |
||||||
| Matte side(Rz) | um | 0.8-2.0 | ||||||||
| Tensile Strength | R.T.(23℃) | Mpa | ＞280 |
IPC-TM-650 2.3.18 |
||||||
| H.T.(180℃) | ＞200 | |||||||||
| Elongation | R.T.(23℃) | ％ | ＞5 |
IPC-TM-650 2.3.18 |
||||||
| H.T.(180℃) | ＞3 | |||||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||
| Anti-oxidization | R.T.(23℃) | day | 90 | / | ||||||
| H.T.(160℃) | Minutes | 15 | / | |||||||
Max Width,1295(±1)mm,May according to the customer request tailor.
