High Elongation HTE Rolled Annealed Copper Foil 0.035mm High Thermal Endurance
Price:
USD13~19/kgs
MOQ:
150kgs
Delivery Time:
7-15days
Brand:
ED-JIMA
Product Description
Product Description
High elongation electrolytic copper foil 0.035mm with high thermal endurance for MCCL copper foil ipc-4562
| 1.The treated foil in gray or red | |
| 2.High peel strength | |
| Features | 3.Good etch ability |
| 4.Excellent adhesion to etching resist | |
| 5.Anti foil cracking by high elongation at elevated temperature | |
| 6.Eco-friendly products and processes | |
| 7.High temperature elongation | |
| 8.High thermal endurance |
| Application | 1.PCB board,pcb |
| 2.Antennas pcb | |
| 3.Metal Copper Clad Laminate | |
| 4.MCCL | |
| 5.CCL,Copper Clad Laminate |
Electrolytic copper foil shows:
Mill Test Certificate of High temperature elongation ED copper foil
| Thickness | um | 12 | 18 | 35 | 70 |
IPC-TM-650 2.3.12 |
|
| Area weight | g/m² | 107±10 | 153±15 | 305±30 | 610±61 |
IPC-TM-650 2.2.12 |
|
| Roughness | (RA) | μm | <0.43 | <0.43 | <0.43 | <0.43 |
IPC-TM-650 2.2.17 |
| (RZ) | μm | <7 | <8.0 | <10.0 | <14 | ||
|
Copper≥ |
% | Above99.8 |
IPC 4562 2.3.15 |
||||
| Tensile Strength | State normal | kg/mm2 | >21 | >21 | >28 | >28 |
IPC 4562 2.4.18 |
| State temper (180℃) | >15 | >15 | >15 | >15 | |||
| ElongationI | state normal | % | >3.0 | >4 | >5 | >5 |
IPC 4562 2.4.18 |
| state temper (180℃) | % | >2 | >2 | >3 | >3 | ||
| Peel strength | kg/cm | >1.1 | >1.3 | >1.7 | >1.9 |
IPC 4562 2.4.8
|
|
|
High temperature oxidation resistance(225℃, 10min) |
No color change | CCP Standard | |||||
| Solderability | Good | CCP Standard | |||||
| Splice | ≤2 | CCP Standard | |||||
Remark:
1. Standard Width is1295(±1)mm,Max width is 1380mm,May according to the customer request tailor.

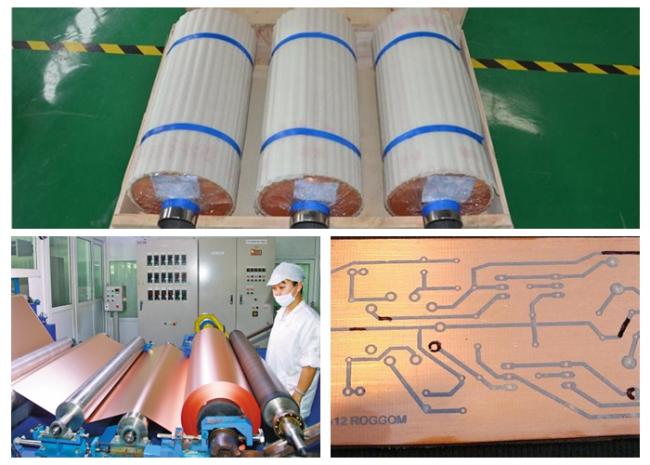

Package of ED electrolytic copper foil :
RFQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-30working days. The specific delivery time depends on the items and the quantity of your order.
Q3. Can you cut into small size?
Yes, we can.
Yes, we can.
Q7.It is wooden box?
Yes ,it is .
Yes ,it is .
Q8: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.or we also provide A4 Sample
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q4. Is it possible be zinc free copper foil?
Yes ,it is possible.
Yes ,it is possible.
Q5.It is wooden box?
Yes ,it is .
Yes ,it is .
Q6. Can we come to China visit factory ?
Yes ,you can .
Yes ,you can .
