0.1mm ED Copper Shielding Foil Polished Raw Surface Treatment ISO Approval
Price:
usd 15-20 kg
MOQ:
100kg
Delivery Time:
5-15 days
Brand:
JIMA
Product Description
Max width Electromagnetic electrodeposited electrolytic ED copper foil 0.1mm for Shielding applications (Standard IPC 4562)
| Features | 1.the treated foil in gray or red |
| 2.High peel strength | |
| 3.Good etch ability | |
| 4.Excellent adhesion to etching resist |
| 1.Phenolic resin board | |
| Application: | 2.Epoxy board |
| 3.shielding application |
Typical properties of Standard copper foil for phenolic resin board and epoxy board.
|
Classification
|
Unit | Requirement | Test Method | |||||||||||
| Foil Designation | / | T | H | M | 1 | 2 | 3 | IPC-4562A | ||||||
| Nominal thickness | / | 12um | 1/2 OZ | 3/4 OZ |
1 OZ |
2 OZ |
3 OZ |
IPC-4562A | ||||||
| Area Weight | g/㎡ | 107±4 | 153±5 | 228±8 | 285±10 | 580±15 | 860±20 |
IPC-TM-650 2.2.12.2 |
||||||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
|||||
| Matte side(Rz) | um | ≤6 | ≤8 | ≤10 | ≤10 | ≤15 | ≤20 | |||||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥150 | ≥220 | ≥235 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
|||||
| Elongation |
R.T.(23℃)
|
％ | ≥2 | ≥3 | ≥3 | ≥4 | ≥4 | ≥4 |
IPC-TM-650 2.3.18 |
|||||
| Subject | Ω.g/㎡ | ≤0.170 | ≤0.166 | ≤0.162 | ≤0.162 | ≤0.162 | ≤0.162 |
IPC-TM-650 2.5.14 |
||||||
| Peel Strength(FR-4) | N/mm | ≥1.0 | ≥1.3 | ≥1.6 | ≥1.6 | ≥2.1 | ≥2.1 |
IPC-TM-650 2.4.8 |
||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||||||
| Anti-oxidization | R.T.(23℃) | day | 180 | / | ||||||||||
| H.T.(200℃) | Minutes | 60 | ||||||||||||
1. We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
2. Standard Width,1295(±1)mm,May according to the customer request tailor.

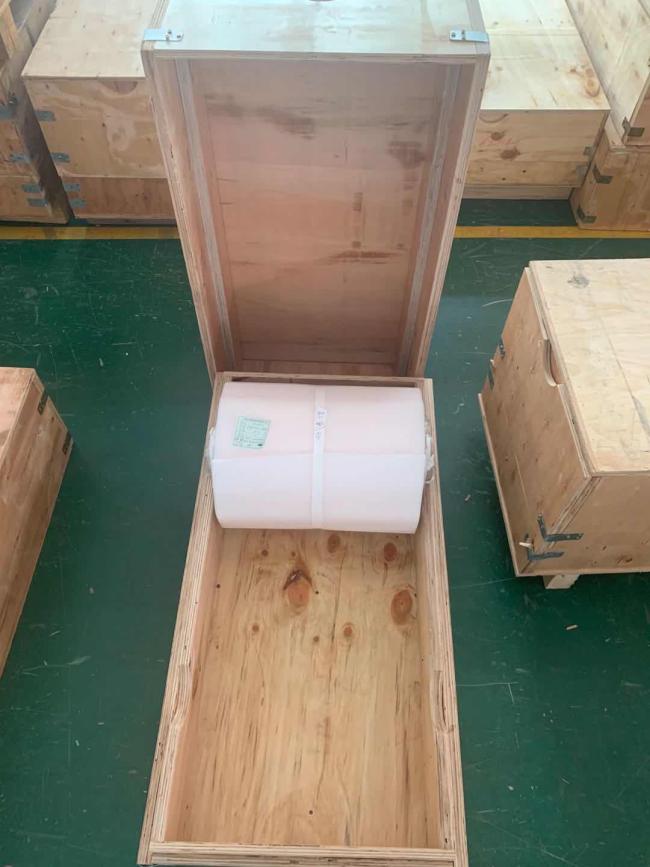

Packing and Mark of ED Shielding copper foil :
FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. what is your standard width and Max width?
A: 1290mm and 1380mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.
Q7. Length per roll?
500-5000meter
500-5000meter
Q8.what is the Internal diameter?
76/152/ custom
76/152/ custom
Q9.Are the package suitable For export ?
Yes , it is suitable for export.
Q11. Can you provide COA?
Yes , we can.
Yes , we can.
Q13. Can we come to China visit factory ?
Yes ,you can .
Yes ,you can .
Q14. Can you cut into small size?
Yes, we can.
Yes, we can.
Q16. How to save after the box opened?
Keep the dry environment,and is better use it in 30days.
Keep the dry environment,and is better use it in 30days.
