Carbon Coated Black Aluminum Foil , Double Sided Battery Aluminum Foil
Double sided carbon coated aluminum foil for Lithium-ion batteries cathode electrode.
Product Type:CAW2.
CAW2 is one of the highest-quality “CA” series product, Due to high conductivity and small size of conventional carbon-coated Al foil ,the obtained functional coating is very thin and highly conductive. The thickness of the functional coating is APPROX.400nm,resulting in improvement of both energy density and power density .we have independent intellectual property for this technology.
Quickly details.
Coated thickness:min 500nm,A: 4~6um B: 2~3um.
substrate Materials: Al foil.
Roll internal diameter: 3inch and 6 inch.
Fineness:> 99.9%.
Bulk Density:1.0 -2.5g/m2.
Features:
| 1 | Improve the surface tension. |
| 2 | Enhance energy density of the battery ,and lower the cost of the electrode production |
| 3 | Reduce internal resistance of the cell. |
| 4 | Improve the specific capacity of the electrode material |
| 5 | Mitigate exothermic reactions |
| 6 | Raise the pass rate of the cell |
| 7 | Increase the consistency of the cell |
Application:
. 3C (LCO.NCM):Lithium-ion batteries for 3C productions.
. Lithium-ion batteries cathode electrode.
Physical and chemical properties (MTC of CAW2 ).
| Planar density (Both side) |
1.0g/m2 1.0±0.2mg/cm2 |
1.5g/m2 1.5±0.3mg/cm2 |
2.0g/m2 2.0±0.3mg/cm2 |
2.5g/m2 2.5±0.3mg/cm2 |
| Covering rate | min.80% | min.90% | Min.100% | min.100 |
| Conductivity | ~30S/cm | ~30S/cm | ~30S/cm | ~30S/cm |
| Peeling Strength | 2.0N | 2.0 N | 2.5N | 2.5N |
| Corrosion resistance | No exfoliation | No exfoliation | No exfoliation | No exfoliation |
Important Matters:
b.>The coating layer is highly Hydrophilic, handle it under personal protection.
F.> This product is developed by our company for the application in batteries , if application in other fields, please discuss with us for it .

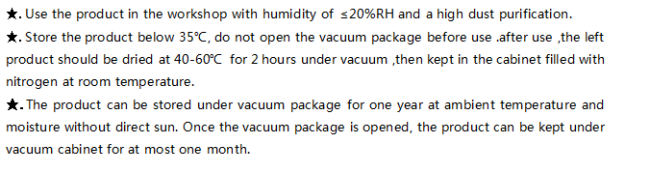

Usage and storage note:
Package:wooden carton.
FAQ:
Q1. what is your standard width?
A: 1000 mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.
Q2. Can you provide Certificate of analysis ?
Yes , we can.
Q3. Does the coated foil Floating in box?
Yes, it does
