Insulated Low Profile 18um Reverse Treated Copper Foil For Wireless Charging
Price:
usd 15-20 /kg
MOQ:
50kg
Delivery Time:
7-20days
Brand:
JIMA
Product Description
Low Profile Reverse Treated Copper Foil 18um 12um For Wireless Charging
Feature
1. Reverse Treated Copper Foil
2. Low profile
3. Arsenic free,gree
4. Excellent etchability

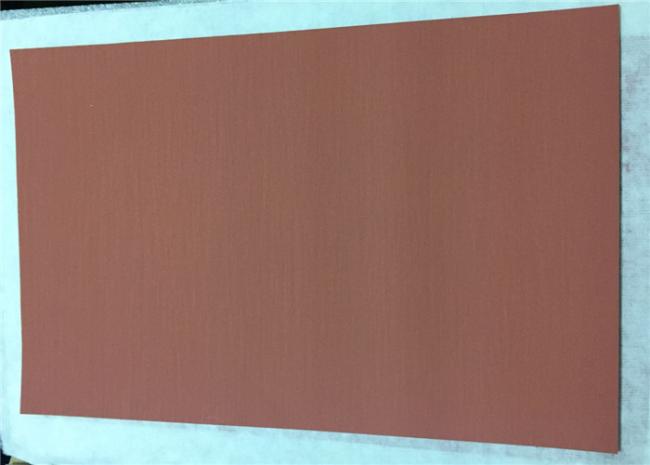

5. the treated foil is pink or Black
6. Shiny side treated
7. Low profile for FCCL
Application
1. 2L FCCL
2. Wireless Charging
3. EMI
Size :
Thickness:12um,18um,35um,50um 70um
Width :200-1340mm,can be cutting as request
Typical properties of Reverse Treated Copper Foil
| Classification | Unit | Requirement | Test Method | ||||
| Nominal thickness | / | 12um | 1/2 OZ(18um) | 1 OZ(35um) | 50UM | 70UM | IPC-4562A |
| Area Weight | g/㎡ | 107±4 | 153±5 | 285±10 | 435±1 | 585±20 | IPC-TM-650 2.2.12.2 |
| Purity | ％ | ≥99.8 | IPC-TM-650 2.3.15 | ||||
| Roughness | Shiny side(Ra) um | ≤3.0 | ≤3.0 | ≤3.0 | ≤8.0 | ≤10 | IPC-TM-650 2.3.17 |
| Matte side(Rz) um | ≤3.0 | ≤4.0 | ≤6.0 | ≤10 | |||
| Tensile Strength | R.T.(23℃) | ≥207 | ≥207 | ≥276 | ≥276 | ≥276 | IPC-TM-650. 2.4.18 |
| H.T.(180℃) | Mpa | ≥103≥138 | |||||
| Elongation | R.T.(23℃) | ≥4 | ≥4 | ≥8 | ≥10 | ≥12 | IPC-TM-650. 2.3.18 |
| H.T.(180℃) | ％ | ≥4 | ≥4 | ≥6 | ≥8 | ≥8 | |
| Peel Strength(FR-4) | N/mm | 0.7 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.3 | IPC-TM-650 2.4.8 |
| Ibs/in | ≥4.0 | ≥4.6 | ≥5.7 | ≥6.9 | ≥7.4 | ||
| Pinholes&porosity | Number | No | IPC-TM-650 2.1.2 | ||||
| Anti-oxidization | R.T.(23℃) | 180 | |||||
| H.T.(200℃) | 60 Minutes | 40 | |||||

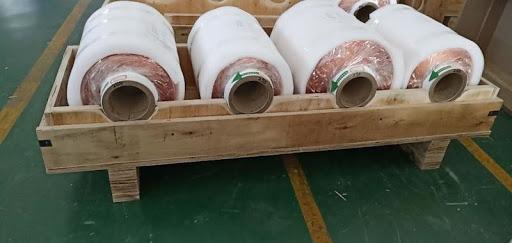

Packing: Wooden box
FAQ
Q: Do you provide samples?
A: Yes, we do.
Q: Can you provide finished product processing service?
A: Yes, we can prodive the finished product after die-cutting.
Q: What is the leadtime for mass production?
A: 7-20 days.
