Customized 160MPa ED Copper Foil Sheet Roll For Circuit Boards
ED electrolytic copper foil with High coarse for double face and multiayer printed circuit boards
Copper foil is a material primarily used as the current collector of the anode in lithium-ion batteries. It has ultra-thin properties and can be coated on both sides. It has the advantage of high load-carrying power and has good coating properties when adhered.
ED electrolytic copper foil Overview:
Range of Thickness: 0.012-0.070 mm
Range of Width: 5-520 mm
Range of Length: 500-5000 M
Available ID: 76 mm,152 mman
Purity:99.8%
ED electrolytic copper foil Features:
- Perfect normal temperature storage performance
- High temperature anti-oxidization performance
- High temperature elongation performance
- Being used in the production of the different double-face and multi-player printed circuit boards
ED electrolytic copper foil Application:
S-THE ED Copper Foils can be used in the production of the different double face and multiayer printed circuit boards
FAQ:
Q1: Can you supply the sample?
A: customization
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3. what is your max width?
A: Max width 1380mm
Typical properties of High coarse copper foil
|
Classification
|
Unit | Requirement | Test Method | |||||
| Foil Designation | / | H | M | 1 | IPC-4562A | |||
| Nominal thickness | / | 1/2 OZ | 3/4 OZ | 1 OZ | IPC-4562A | |||
| Area Weight | g/㎡ | 150±5 | 228±8 | 285±10 |
IPC-TM-650 2.2.12.2 |
|||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
||
| Matte side(Rz) | um | ≤8 | ≤10 | ≤12 | ||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥220 | ≥235 | ≥280 |
IPC-TM-650 2.3.18 |
||
| Elongation |
R.T.(23℃)
|
％ | ≥2 | ≥3 | ≥3 |
IPC-TM-650 2.3.18 |
||
| Peel Strength(FR-4) | CEM-1 | N/mm | ≥1.5 | ≥1.7 | ≥2.0 |
IPC-TM-650 2.4.8 |
||
| PTC | ≥0.5 | ≥0.6 | ≥0.8 | |||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||
| Anti-oxidization | R.T.(23℃) | day | 180 or customize | / | ||||
| H.T.(200℃) | Minutes | 60 or customize | / | |||||

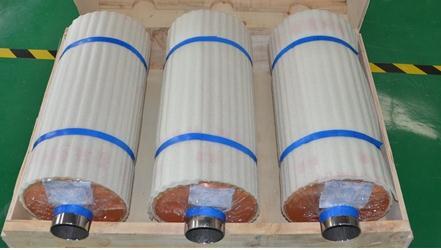

packaging:
