550TU-L Low Abrasive Slurry Pump / Mining Slurry Pump Mechanical seal Sealing

Description

• Slurry pump structure: L type slurry pump for light cantilever, axial horizontal double suction centrifugal slurry pump. The outlet position of the pump can be installed at eight different angles according to the requirement and rotated at 45 DEG C intervals.
• Slurry pump material: L light duty slurry pump body with replaceable wear-resistant metal lining, impeller, sheath, retaining plate and other over-current components are wear-resistant metal.
• Slurry pump: compared with heavy duty slurry pump, the pump has high rotational speed, small size and light weight. It is suitable for conveying fine particles, low concentration slag slurry or corrosive slag slurry. The weight of the slurry is generally not more than 30%, and it can also be used to transport high concentration and low abrasive slurry.
• Seal type: L type pump seals can use packing seal, Deputy impeller seal, packing plus side impeller seal, mechanical seal and other types.
• Drive type: DC direct drive, CR parallel belt drive, ZVZ upper and lower belt drive, CV vertical belt drive and other types.

Applications

• Thickener Overflow
• Paper and Pulp
• Slag Granulation

Structure ＆ Material

The numbers of the main parts

PERFORMANCE

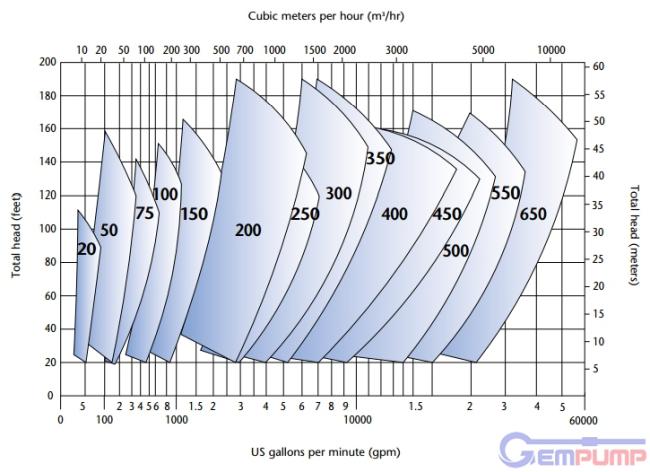

Select Chart
