Carbon Steel Lebus Sleeves In Offshore Petroleum Crane Winch
Price:
Negotiation
MOQ:
1 set
Delivery Time:
20 to 30 work days, depends on order amount and specification
Brand:
LBS
Product Description

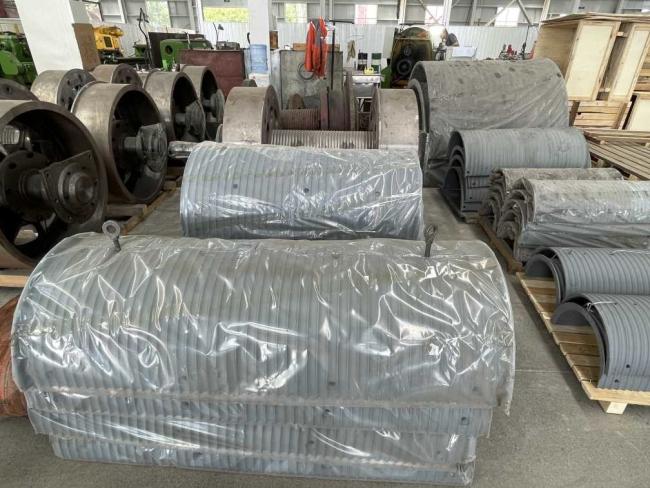

Carbon Steel LBS Sleeve Offshore Petroleum Crane Winch Lefthand Righthand Rotation
Product structure:
1.The split sleeve is composed of spiral groove and parallel groove. 2.The grooved cylinders are split in halves for easy installation either by welding or bolting to an existing drum.
3.Split sleeves can be placed over smooth and ungrooved drum,suitable for modification or replacement of drum.
4.The groove design conforms to the specified wire rope structure, diameter and length.
3.Split sleeves can be placed over smooth and ungrooved drum,suitable for modification or replacement of drum.
4.The groove design conforms to the specified wire rope structure, diameter and length.
Machinable product material:
Carbon steel, Nylon polymer, alloy steel, aluminum, all kinds of high-strength steel Q345, Q420, Q460, 20GrMo, 40GrMo, 42GrMo, etc
Product application:
1. Marine machinery: offshore petroleum crane winch, drawworks and hoist
2. The petroleum industry: oil drilling rig, petroleum tractor hoist, petroleum workover rig, trailermounted pumping unit winch , etc
3. Engineering machinery: tower crane, piling machine
4. Crane machinery: the bridge lifting machine, tower crane
5. The hoist: building wipe wall machine, winding machine
......
2. The petroleum industry: oil drilling rig, petroleum tractor hoist, petroleum workover rig, trailermounted pumping unit winch , etc
3. Engineering machinery: tower crane, piling machine
4. Crane machinery: the bridge lifting machine, tower crane
5. The hoist: building wipe wall machine, winding machine
......
Product specifications:
1) Wire rope or cable diameter (mm)
2) Drum diameter (mm)
3) Drum length (mm)
4) Rope capacity
5) Drum material
6) Maximum operating load on rope or cable
7) Type of rope entry
8) Direction of wire rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges
11) Detailed drawing of the drum
TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc
LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc
Product advantage:
he rope capacity for the LBS Sleeve product is impressive, ranging from 10-10000 M. This allows users to choose the perfect size for their project, without having to worry about running out of rope. Additionally, the rope groove type for the LBS Sleeve product is Lebus, which is an industry standard. This ensures that the product is reliable and efficient, giving users peace of mind.
The LBS Sleeve product is perfect for those who require grooved sleeves for their winch drum. It is designed to work with a variety of winch drums, making it a versatile and useful product. The product is also customizable, with a range of colors available to suit any taste. The spooling device fit type ensures that the product is easy to use and provides excellent results.
The LBS Sleeve product is ideal for those who need a reliable winch drum cover. It is designed to fit perfectly over the winch drum, protecting it from damage and ensuring that it operates efficiently. The grooved sleeves ensure that the rope runs smoothly over the drum, reducing wear and tear and prolonging the life of the winch drum.
Overall, the LBS Sleeve product is an excellent choice for those who require grooved sleeves for their winch drum. It is a versatile and reliable product that is designed to provide excellent results. The customized color options make it easy to match the product to any project. The spooling device fit type ensures that the product is easy to use and provides reliable results. The rope capacity and Lebus rope groove type make it perfect for those who need to work with long ropes and want to ensure that they last as long as possible.
Technical parameters and application:
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) |
Main drum length(mm) | Application |
| 1 | 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch |
| 2 | 13 18 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch |
| 3 | 22 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 |
Offshore Crane, |
......
