Semi Truck 2 inch Trailer Fifth Wheel Cast Top Plate
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20 to 30 working days, depends on order amount and specification
Brand:
LBS
Product Description
Product name: Trailer Fifth Wheel
Product material:30Q,50#,90# Cast steel,Nodular cast iron,Steel plate stamping......
Casting Series Fifth Wheel type:
| Model Number |
Mounting Height (mm) |
Mounting Width (mm) |
Vertical load (T) |
D-value (KN) |
Weight (Kg) |
King pin size (mm) |
Function |
Capacity (T) |
| LBSCD50x - 15 | 150 | 800 | 15 | 120 | 110 |
Φ50 ( 2“) |
One-way | ＜30 |
| LBSCD50x - 18 | 185 | |||||||
| LBSCD50 - 15 | 150 | 900 | 20 | 152 | 135 | ≤50 | ||
| LBSCD50 - 18 | 185 | |||||||
| LBSCD50 - 25 | 250 | 145 | ||||||
| LBSCL50 - 29 | 290 | 165 | Two-way | |||||
| LBSCD90 - 18 | 185 | 960 | 36 | 260 | 190 |
Φ90 ( 3.5“) |
One-way |
＞50 ＜100 |
| LBSCD90 - 25 | 250 | 200 | ||||||
| LBSCL90 - 29 | 290 | 260 | Two-way |
Punching Series Fifth Wheel
| Model Number | material |
Thickness (mm) |
Mounting Height (mm) |
Mounting Width (mm) |
Vertical load (T) |
D-value (KN) |
Capacity (T) |
| LBSD90 | 16Mn | 12 | 185 | 960 | 51 | 424 | ≤100 |
| LBSD50 | 16Mn | 8 | 185 | 900 | 25 | 235 | ≤50 |
Function:
Unidirectional and bidirectional
Advantaged:
1. Traction pin has excellent abrasion resistance
2. Cast top plate, machined flat, provides stronger load bearing surface
3. Reduces friction and uneven wear proven hook and plunger design from existing model safe and reliable locking mechanism.
4. High level of operating reliability
5. Can be used in complicated loading conditions
6. Wearing ring is easy to replac

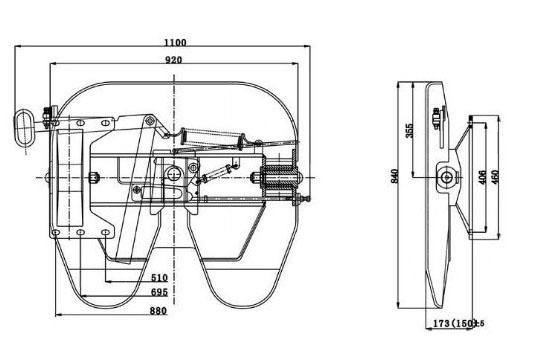

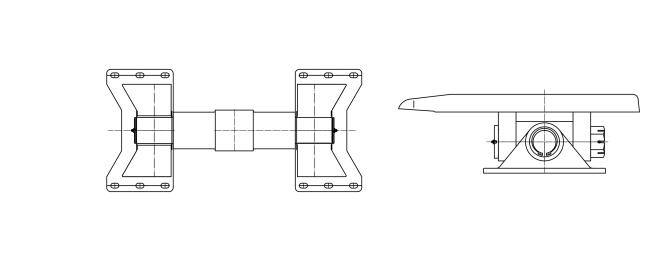

Cast steel drawing specification parameter list:
