Carbon Steel Alloy Steel Wire Rope Winch Drum For Cable Laying

Drum material:

carbon steel, alloy steel, cast steel, aluminum, all kinds of high-strength steel Q345, Q420, Q460, 15CrMo,20GrMo, 42GrMo, etc

Product specifications:

Custom design based on the requirements
1) Cable outer diameter (mm)
2) Cable drum diameter (mm)
3) Width between flanges (mm)
4) Length of cable to be accommodated
5) Material and requirements of the cable drum
6) Maximum operating load on cable
7) Direction of rope entry
8) Type of rope entry

Rotation Direction:

Left or Right

Use conditions:

No more than 2000 meters above sea level.
Ambient temperature: -20 -+45
Allow indoor, outdoor, rain and non corrosive gas dust in the workplace

Product application:

1. Cable Drum:Marine cable winch, Container cable winch,Tower crane

2. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch

3. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc

4. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch

5. The construction machinery: Building wipe wall winch, Winding hoist, Windlass

6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch

7. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc

Product advantage:

LBS grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of rope, extend the service life of wire rope can be more than 500%, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.

Product structure:

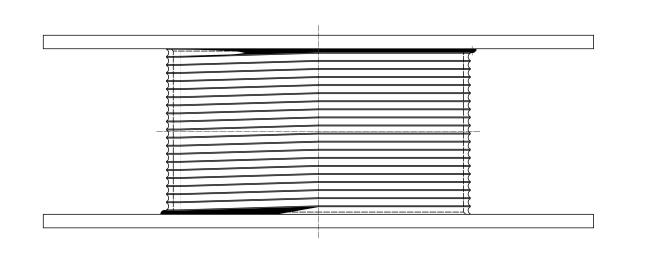

Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
