Anchor Towing Truck Small Hydraulic Crane Winch Low Energy Consuming
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 to 40 working days, depends on order amount and specification
Brand:
LBS
Product Description
Advantage of the goods from us :

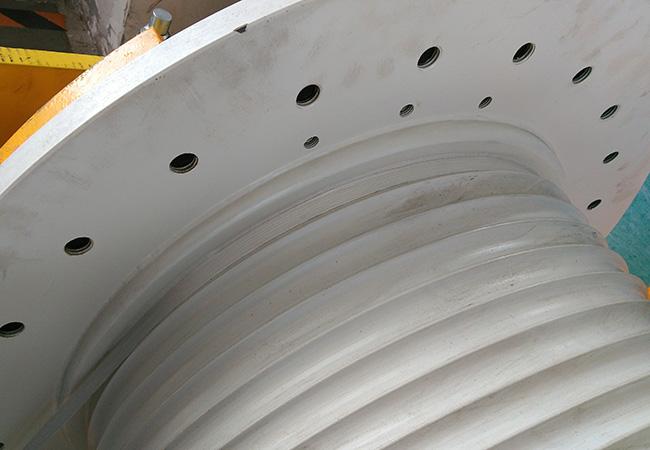

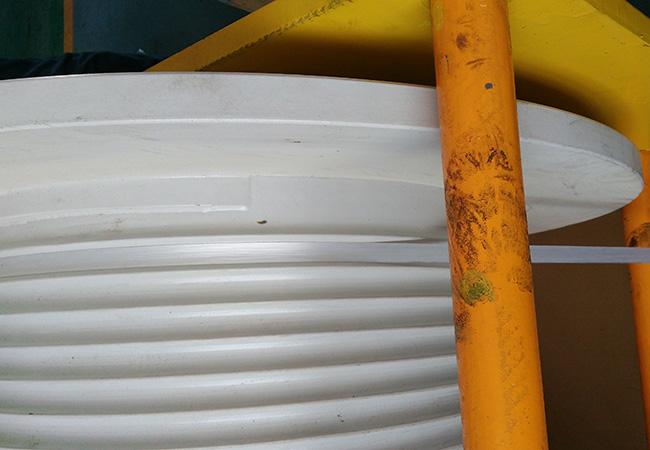

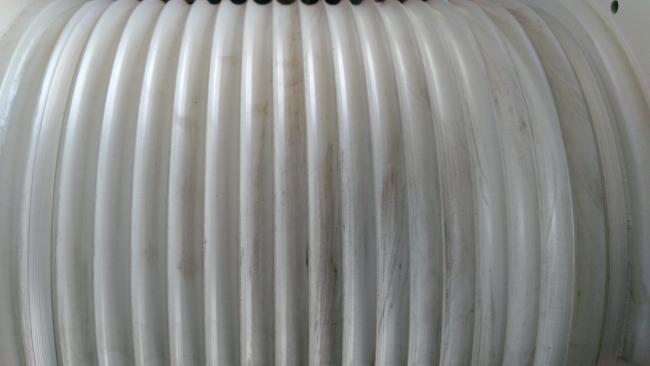

1)LBS groove drum which can make the rope work in orderly to improve the working efficency.
2)We have more successful case in China for many of the reserch institutions
3)We have the LBS patent and specilised design and worker including the machine

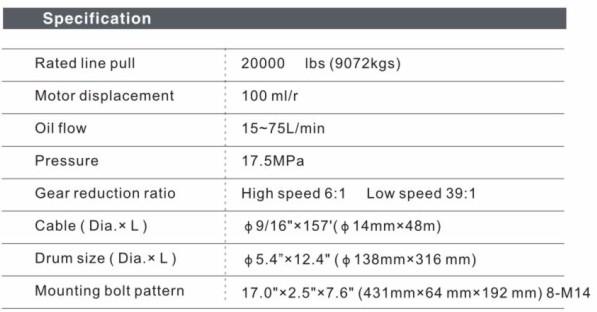

Techinial specification:![1 year warrantee boughton used crane hydraulic winch]()
Product structure:
Product name:hydraulic crane winch
1. The hydraulic crane winch is composed of hydraulic motor, brake, Valve, Baseplate, KC type planetary reducer, LBS grooved drum, frame and supporting shaft
2. The hydraulic motor, planetary gearbox and brake are installed and hide in the drum of the winch, so the overall length is kept to the minimum. The compact design is very suitable for applications where the installing room is limited
3. High starting and working efficiency, Low energy consuming
4. Low noise, Compact size
Application:
Towing Truck (crane )winch are widely used in mining, metallurgical, cranes; construction, chemical, road and bridge, water and electricity being installed the terminal, hydropower station, engineering and installation, oil and other industries.
Our service:
1. Top quality with competitive price
2. Compact structure and reasonable design
3. Safe and reliable function
4. Smooth running over the entire speed range
5. Reliable operation with little noise
