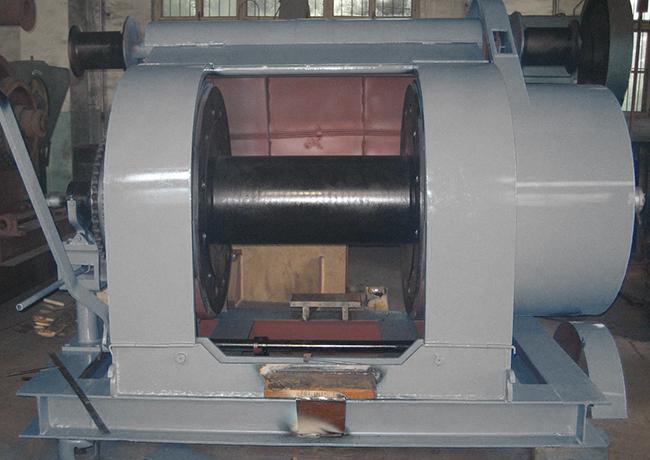

Heavy Duty Windlass Boat Winch / Large Tonnage Windlass Hoist
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 to 40 working days, depends on order amount and specification
Brand:
LBS
Product Description
wire rope winch JM series technical sheet:
| Model | JZ2 | JZ3 | JZ5 | JZ8 | JZ10 | |
| Line pull capacity (kg) | 2000 | 3000 | 4000 | 8000 | 10000 | |
| Wire rope average speed (m/min) | 12 | 10 | 10 | 10 | 9 | |
| Wire rope(mm): | 12 | 16 | 22 | 28 | 30 | |
| Reduction box | Type | JZQ350 | JZQ350 | JZQ400 | JZQ500 | JZQ650 |
| Transmission ratio | 23.34 | 31.5 | 23.34 | 31.5 | 40.17 | |
| Drum (mm) | Diameter() | 273 | 325 | 405 | 500 | 550 |
| Length | 480 | 520 | 650 | 900 | 1000 | |
| Capacity(m) | 150 | 180 | 250 | 300 | 450 | |
| motor | Type | JZ50M2-6 | JZ60M2-6 | JZ60A-6 | JZ60-L-8 | JZ-LB-1-8 |
| Power(kW) | 7.5 | 7.5 | 11 | 22 | 30 | |
| Rotate speed(r/min) | 945 | 950 | 955 | 730 | 725 | |
| Hydraulic Brake | JZ-180-1 | JZ180-9 | JZ175-9 | JZ179-5 | JZ160-8 | |
| Equipment Dimension (cm) | 145 x96 x62 | 154 x105 x70 | 180x130 x90 | 210x270x105 | 220x200x110 | |
| Weight(kg) | 630 | 680 | 1400 | 3000 | 4000 | |
Features:
- Switch controller with forward, stop and reverse
- Switching Method:electric or hand
- wires with steel cover protection
- Uses 3 wires to power supply connection
- 3000 kg line pull capacity
- Drum capacity 16mm x 180m ropes
- Braking: Electric dynamic hydraulic brake, can stop the drum when power loose, also can plus mechanical brake.
- With bolt holes on bottom for mounting.
- Shipping weight 1mt
- Apprance size: 1770mm(L) x 11200mm(W) x 1120mm(H)
- Motor:7.5kw,380v,3P,50HZ,
-
wire rope winch JM series technical sheet:
Model JM2 JM3 JM5 JM8 JM10 Line pull capacity (kg) 2000 3000 5000 8000 10000 Wire rope average speed (m/min) 12 10 10 10 9 Wire rope(mm): 12.5 15.5 21.5 26 30 Reduction box Type JZQ350 JZQ350 JZQ400 JZQ500 JZQ650 Transmission ratio 23.34 31.5 23.34 31.5 40.17 Drum (mm) Diameter() 273 325 406 500 550 Length 480 520 645 900 1000 Capacity(m) 150 180 250 300 450 motor Type YZ160M2-6 YZ160M2-6 YZ160L-6 YZR225M-8 YZR250M1-8 Power(kW) 7.5 7.5 11 22 30 Rotate speed(r/min) 948 948 953 720 720 Hydraulic Brake YWZ-200/25 YWZ-200/25 YWZ-300/45 YWZ-300/45 YWZ-300 Equipment Dimension (cm) 142 x96 x62 154 x107 x70 185 x135 x90 205x275x105 220x190x110 Weight(kg) 630 680 1400 3000 4000 Features:
- Switch controller with forward, stop and reverse
- Switching Method: Hand turn control
- wires with steel cover protection
- Uses 3 wires to power supply connection
- 3000 kg line pull capacity
- Drum capacity 16mm x 180m ropes
- Braking: Electric dynamic hydraulic brake, can stop the drum when power loose, also can plus mechanical brake.
- With bolt holes on bottom for mounting.
- Shipping weight 1000kg
- Apprance size: 1775mm(L) x 1150mm(W) x 1100mm(H)
- Motor:7.5kw,380v,3P,50HZ,
-
wire rope winch JM series technical sheet:
Model JM2 JM3 JM5 JM8 JM10 Line pull capacity (kg) 2000 3000 5000 8000 10000 Wire rope average speed (m/min) 12 10 10 10 9 Wire rope(mm): 12.5 15.5 21.5 26 30 Reduction box Type JZQ350 JZQ350 JZQ400 JZQ500 JZQ650 Transmission ratio 23.34 31.5 23.34 31.5 40.17 Drum (mm) Diameter() 273 325 406 500 550 Length 480 520 645 900 1000 Capacity(m) 150 180 250 300 450 motor Type YZ160M2-6 YZ160M2-6 YZ160L-6 YZR225M-8 YZR250M1-8 Power(kW) 7.5 7.5 11 22 30 Rotate speed(r/min) 948 948 953 720 720 Hydraulic Brake YWZ-200/25 YWZ-200/25 YWZ-300/45 YWZ-300/45 YWZ-300 Equipment Dimension (cm) 142 x96 x62 154 x107 x70 185 x135 x90 205x275x105 220x190x110 Weight(kg) 630 680 1400 3000 4000 Features:
- Switch controller with forward, stop and reverse
- Switching Method: Hand turn control
-
- wires with steel cover protection
- Uses 3 wires to power supply connection
- 3000 kg line pull capacity
- Drum capacity 16mm x 180m ropes
- Braking: Electric dynamic hydraulic brake, can stop the drum when power loose, also can plus mechanical brake.
- With bolt holes on bottom for mounting.
- Shipping weight 1000kg
- Apprance size: 1775mm(L) x 1150mm(W) x 1100mm(H)
- Motor:7.5kw,380v,3P,50HZ,
Company services
1. Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used LBS grooved drum)
2. One year of warranty
3. The engineer can provide overseas service
4. Quick and responsible after-sales service
5. Very competitive price
6. Professional technicians provide installation, commissioning services.
7. Technical advisory for any time.
