Heavy Duty Semi Truck Spare Parts Trailer Fifth Wheel / Traction Base
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20 to 30 working days, depends on order amount and specification
Brand:
LBS
Product Description
Product name:Heavy Duty Semi Truck Spare Parts Fifth Wheel / Traction Base
Product material:30Q, Cast steel, Nodular cast iron, Steel plate stamping......
Product Function:Bidirectional or Unidirectional
Product Advantaged:
1. Cat top plate, machined flat, provides stronger load bearing surface, Reduces friction and uneven wear.
2. Lnfinite lock adjustment provides improved lock and kingpin durability
3. Reduces friction and uneven wear proven hook and plunger design from existing model safe and reliable locking mechanism.
4. High level of operating reliability
5. Can be used in complicated loading conditions
6. Wearing ring is easy to replac
Casting Series Fifth Wheel
| Model Number |
Mounting Height (mm) |
Mounting Width (mm) |
Vertical load (T) |
D-value (KN) |
Weight (Kg) |
King pin size (mm) |
Function |
Capacity (T) |
| LBSCD50x - 15 | 150 | 800 | 15 | 120 | 110 |
Φ50 ( 2“) |
One-way | ＜30 |
| LBSCD50x - 18 | 185 | |||||||
| LBSCD50 - 15 | 150 | 900 | 20 | 152 | 135 | ≤50 | ||
| LBSCD50 - 18 | 185 | |||||||
| LBSCD50 - 25 | 250 | 145 | ||||||
| LBSCL50 - 29 | 290 | 165 | Two-way | |||||
| LBSCD90 - 18 | 185 | 960 | 36 | 260 | 190 |
Φ90 ( 3.5“) |
One-way |
＞50 ＜100 |
| LBSCD90 - 25 | 250 | 200 | ||||||
| LBSCL90 - 29 | 290 | 260 | Two-way |
Punching Series Fifth Wheel
| Model Number | material |
Thickness (mm) |
Mounting Height (mm) |
Mounting Width (mm) |
Vertical load (T) |
D-value (KN) |
Capacity (T) |
| LBSD90 | 16Mn | 12 | 185 | 960 | 51 | 424 | ≤100 |
| LBSD50 | 16Mn | 8 | 185 | 900 | 25 | 235 | ≤50 |
Installation size:
The matching length of the connecting part of the traction seat and the mounting plate of the traction seat should be 50mm, and should be placed in the front and back of the block plate welding block.

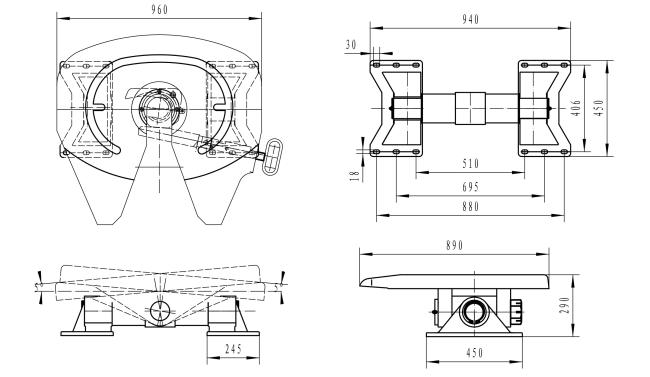

Cast steel drawing specification parameter list:
