Oil Wells Logging Deep Well Logging Offshore Winch 100m - 10000m Rope Capacity

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 30 to 40 working days, depends on order amount and specification

Brand: LBS

Product Description

Feature look:

Rope diameter:3~190mm

Rope capacity:100~10000m

Power:electric or hydraulic

Groove: LBS ,sprial or smooth

Sling type:cable or wire

Drive rotation:Left or right

Colour:Blue or requirement

Automatic spooling device;

Brake system is reliable and easy to operate;

Wide range of measurement with high precision;

Automatic show the depth and easy to reset.

Parameter can be design as customer

Product advantage:

1. The hydraulic winch system adopts the imported pump and motor, and the oil pump adopts proportional control mode. The stepless speed regulation of the drum can be realized, the operation is flexible and convenient, and the operation performance is good.

2. Winch drum adopts LBS groove, In the operation of multi-layer steel rope, the LBS groove has high efficiency,The LBS groove can evenly distribute the loads between the layers, and the practice proves that the life of the wire rope is greatly prolonged.

Parameter :(can be design as working condition or requirement)

Model	Layer plly force (T)	Rope speed	Drum bottom diameter	Difference of working pressures(Mpa)	Rope capaticty(mm)	Diameter of steel cable(mm)	Model of power
LBSOF1-10-4	30	0-35	310	15.9	65	15	XH2-420 D51
LBSOF1-20-4	50	0-40	380	16.3	70	20	XH3-900 D240 101
LBSOF1-30-4	80	0-40	475	15.5	100	24	XH5-1800 D240101
LBSOF1-40-4	100	0-40	470	16	90	28	XH6-2000 D240 101
LBS0F1-50-4	120	0-30	600	17.5	180	32	XH6-3000 D240101

Company profile:

Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.

Our services:

Top quality with competitive price.

Compact structure and reasonable design

Safe and reliable function.

Highly efficient, constant operating torque motor.

Smooth running over the entire speed range.

Reliable operation with little noise.

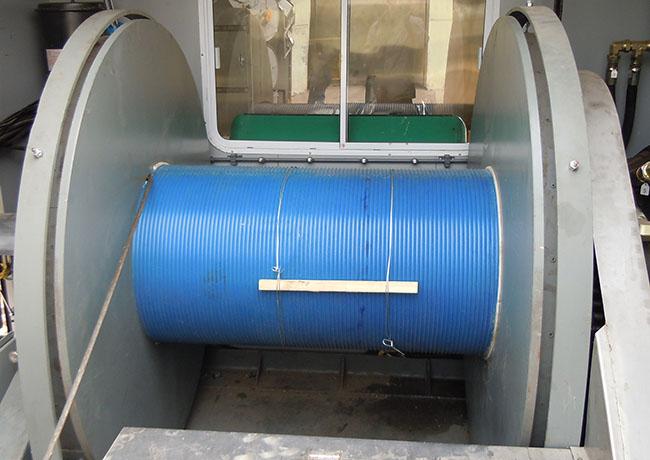

LBS groove tips:

1.Each one circle layer of the grooved drum has two parallel groove and two groove section

2.Make the cable even smooth ;load even distribution

3.Prevent cross &mess in cable rolling working happening

4.Lower the cable damage, extend the cable life
