Recovery Wire Rope Or Cable LBS Grooved Drum Highly Rugged Design
Price:
Negotiation
MOQ:
1 set
Delivery Time:
20 to 30 working days, depends on order amount and specification
Brand:
LBS
Product Description

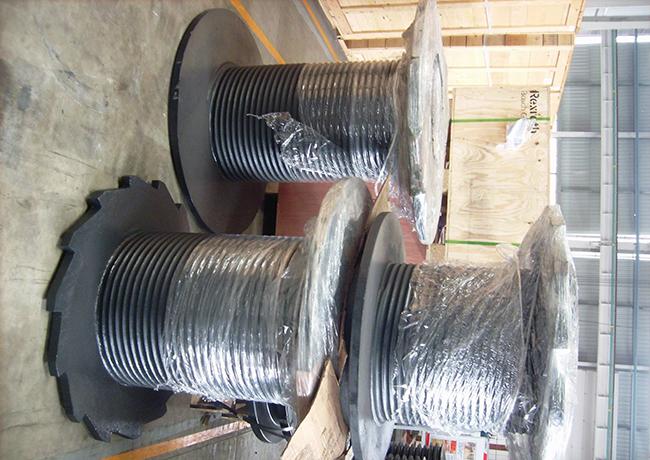

Recovery Wire Rope Or Cable LBS Grooved Drum Highly Rugged Design
Product structure:
Integral wire rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
Product material:
Carbon steel, Alloy steel, Stainless steel, All kinds of high-strength steel Q345, Q420, Q460, 15CrMo, 20GrMo, 40GrMo, 42GrMo, etc
Ours services
1. After-sales Service Provided: Engineers available to service machinery overseas
2. The warranty is one year
3. Top quality with competitive price
4. The engineer can provide overseas service
5. Quick and responsible after-sales service
Product application:
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
4. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch,Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
Technical parameters and application:
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) |
Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 |
Offshore Crane, |
......
