Winch grooves sleeves:

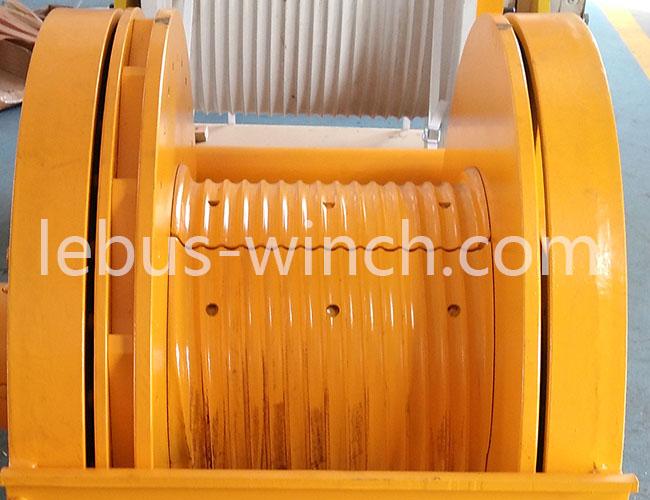

LBS groove sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum. It is usually cheaper to replace a worn out sleeve instead of replacing or repairing the complete drum assembly.
Split-sleeve system structure:

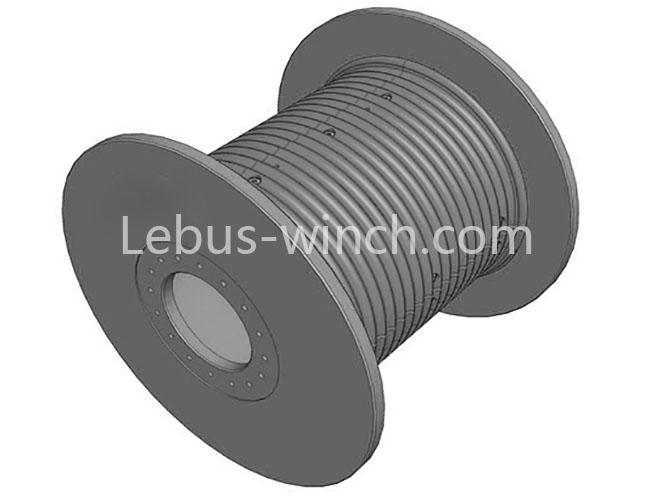

Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum,The split sleeve is composed of spiral groove and parallel groove, the groove design conforms to the specified wire rope structure, diameter and length.Compared with cordless groove (smooth) drum and helical groove drum.
LBS grooved drum has obvious advantages in multilayer spooling. It can be widely used in the heavy lifting and compact working conditions.
advantage:
1. Each one circle layer of the grooved drum has two parallel groove section and two groove section
2. Make wire rope spooling more smooth and uniform distribution of load between each layer
3. Prevent cross &mess in rope spooling working happening
4. Lower the rope damage, extend the rope life
| No: | Wire diameter(mm): |
Rotation |
Grooved drum diameter(mm) |
Width between the flanges(mm) |
Layers | Rope capacity(m) |
|
1 |
5 |
Lefthand |
80 |
150 |
3 |
18 |
|
2 |
12 |
Lefthand |
150 |
280 |
2 |
19 |
| 3 |
24 |
Righthand |
300 |
300 |
4 |
43 |
| 4 |
32 |
Lefthand |
500 |
460 |
6 |
127 |
| 5 |
42 |
Righthand |
800 |
750 |
8 |
360 |
| 6 |
58 |
Righthand |
1100 |
1000 |
8 |
1800 |
