Workover Rig XJ450 XJ550 Model Windlass Mooring Winch Oil Wells And Drilling
Price:
USD10000-50000/set
MOQ:
1 set
Delivery Time:
about a month
Brand:
LBS
Product Description

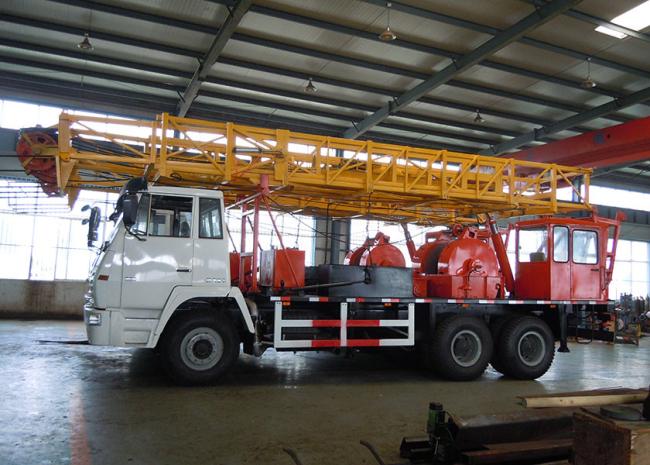

Name: Workover rig XJ450 XJ550 Model for Maintenance of Oil wells and drilling
Product parameter:
Can be equipped with self-propelled chassis, chassis or traction chassis, according to customer needs to meet the desert / Mountain / plains / other operating environment.All products have API certification.
| Workover rig modle | XJ20 | XJ30 | XJ40 | XJ60 | XJ80 | XJ100 | XJ120 | XJ150 | XJ180 | ||
| XJ150 | XJ180 | XJ200 | XJ250 | XJ350 | XJ450 | XJ550 | XJ650 | XJ750 | |||
| Operating depth | Basic operating depth (m) | (2-7/8"EU) | 1600 | 2600 | 3200 | 4000 | 5500 | 7000 | 8500 | ||
| Overhaul operating depth (m) | (2-7/8"DP) | 2000 | 3200 | 4500 | 5800 | 7000 | 8000 | 9000 | |||
| (3-1/2"DP) | 2500 | 3500 | 4500 | 5500 | 6500 | 7500 | |||||
| (4-1/2"DP) | 3600 | 4200 | 5000 | 6000 | |||||||
| Rated hook load(kN) | 200 | 300 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | ||
| Max. hook load(kN) | 360 | 585 | 675 | 900 | 1125 | 1350 | 1575 | 1800 | 2250 | ||
| Draw works power(kW) | 80~150 | 120~180 | 160~257 | 257~330 | 280~400 | 330~450 | 400~500 | 450~600 | 550~750 | ||
| Mast height(m) | 16,18 | 17,21 | 29,31 | 31,33,35 | 36,38 | ||||||
| Wire rope diameter(mm) | 22 | 26 | 26,29 | 29,32 | 32 | ||||||
| Effective rope number | 4 | 6 | 8 | 8,10 | 10 | ||||||
