30Q Heavy Duty Two Way Traction Seat , Trailer Hitch Wheel 50T Imposed Load
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20 to 30 working days, depends on order amount and specification
Brand:
LBS
Product Description

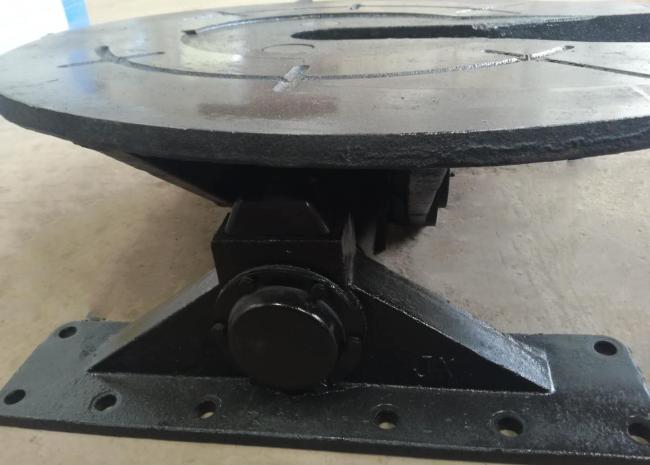

Product name:30Q Heavy Duty Two-Way Traction Seat/Cast-Steel Trailer Fifth Wheel
Specifications size:1090*920*310mm
Function:Bidirectional
Product material:0Q, 50# Cast steel, Nodular cast iron, Steel plate stamping......
Casting Series Fifth Wheel
| Model Number |
Mounting Height (mm) |
Mounting Width (mm) |
Vertical load (T) |
D-value (KN) |
Weight (Kg) |
King pin size (mm) |
Function |
Capacity (T) |
| LBSCD50x - 15 | 150 | 800 |
15 |
120 | 110 |
Φ50 ( 2“) |
One-way | ＜30 |
| LBSCD50x - 18 | 185 | |||||||
| LBSCD50 - 15 | 150 | 900 | 20 | 152 | 135 | ≤50 | ||
| LBSCD50 - 18 | 185 | |||||||
| LBSCD50 - 25 | 250 | 145 | ||||||
| LBSCL50 - 29 | 290 | 165 | Two-way | |||||
| LBSCD90 - 18 | 185 | 960 | 36 | 260 | 190 |
Φ90 ( 3.5“) |
One-way |
＞50 ＜100 |
| LBSCD90 - 25 | 250 | 200 | ||||||
| LBSCL90 - 29 | 290 | 260 | Two-way |
Punching Series Fifth Wheel
| Model Number | material |
Thickness (mm) |
Mounting Height (mm) |
Mounting Width (mm) |
Vertical load (T) |
D-value (KN) |
Capacity (T) |
| LBSD90 | 16Mn | 12 | 185 | 960 | 51 | 424 | ≤100 |
| LBSD50 | 16Mn | 8 | 185 | 900 | 25 | 235 | ≤50 |
Advantaged:
1. Cat top plate, machined flat, provides stronger load bearing surface, Reduces friction and uneven wear.
2. Lnfinite lock adjustment provides improved lock and kingpin durability
3. Reduces friction and uneven wear proven hook and plunger design from existing model safe and reliable locking mechanism.
4. High level of operating reliability
5. Can be used in complicated loading conditions
6. Wearing ring is easy to replac

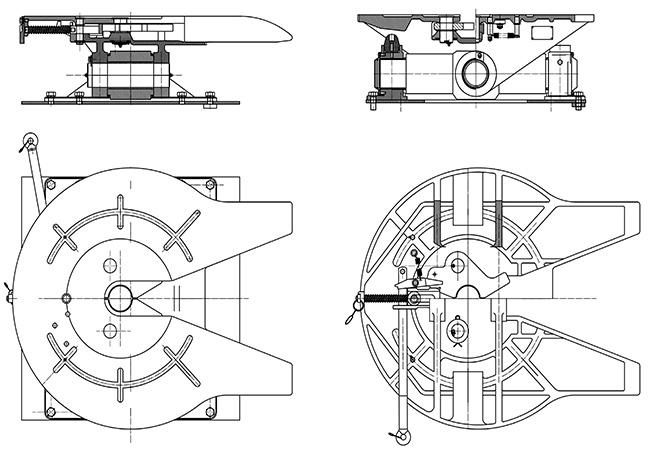

Cast steel drawing specification parameter list:
