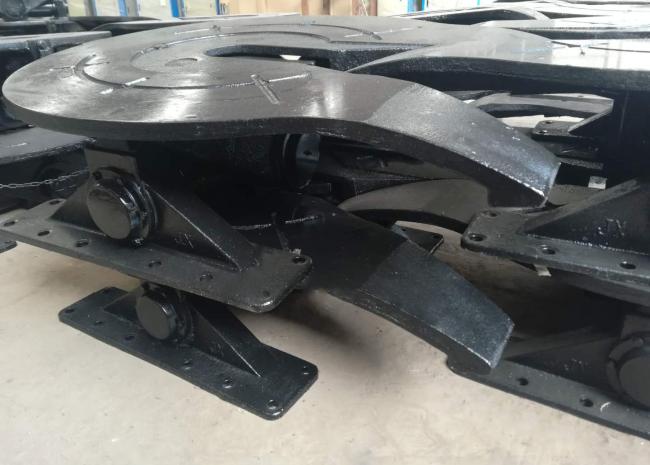

Cast Steel Bidirectional Trailer Fifth Wheel With 50mm / 90mm Towing Pins
Price:
USD800-2000
MOQ:
1 set
Delivery Time:
20 to 30 working days, depends on order amount and specification
Brand:
LBS
Product Description
Product name:Bidirectinal Traction Seat/Cast-Steel Trailer Fifth Wheel with 50mm or 90mm towing pins
Specifications size:1090*920*310mm
Function:Bidirectional
Product material:0Q, 50# Cast steel, Nodular cast iron, Steel plate stamping......
Casting Series Fifth Wheel
| Model Number |
Mounting Height (mm) |
Mounting Width (mm) |
Vertical load (T) |
D-value (KN) |
Weight (Kg) |
King pin size (mm) |
Function |
Capacity (T) |
| LBSCD50x - 15 | 150 | 800 |
15 |
120 | 110 |
Φ50 ( 2“) |
One-way | ＜30 |
| LBSCD50x - 18 | 185 | |||||||
| LBSCD50 - 15 | 150 | 900 | 20 | 152 | 135 | ≤50 | ||
| LBSCD50 - 18 | 185 | |||||||
| LBSCD50 - 25 | 250 | 145 | ||||||
| LBSCL50 - 29 | 290 | 165 | Two-way | |||||
| LBSCD90 - 18 | 185 | 960 | 36 | 260 | 190 |
Φ90 ( 3.5“) |
One-way |
＞50 ＜100 |
| LBSCD90 - 25 | 250 | 200 | ||||||
| LBSCL90 - 29 | 290 | 260 | Two-way |
Punching Series Fifth Wheel
| Model Number | material |
Thickness (mm) |
Mounting Height (mm) |
Mounting Width (mm) |
Vertical load (T) |
D-value (KN) |
Capacity (T) |
| LBSD90 | 16Mn | 12 | 185 | 960 | 51 | 424 | ≤100 |
| LBSD50 | 16Mn | 8 | 185 | 900 | 25 | 235 | ≤50 |
Advantaged:
1. Cat top plate, machined flat, provides stronger load bearing surface, Reduces friction and uneven wear.
2. Lnfinite lock adjustment provides improved lock and kingpin durability
3. Reduces friction and uneven wear proven hook and plunger design from existing model safe and reliable locking mechanism.
4. High level of operating reliability
5. Can be used in complicated loading conditions
6. Wearing ring is easy to replac
Cast steel drawing specification parameter list:
