Professional Single Drum Wire Rope Electric Hoist Winch 8T10T 20T 30T
Title:Single Drum Wire Rope Electric Hoist Winch 8T10T 20T 30T price
Introduction:
- Powered by electricity and consist of electric motor, coupling, brake, gear box, drum and frame
- Cable length: according to requirement
- Capacity: Customized capacity
- Control panel with wire or remote control
- ISO, GOST, SGS and CE certificated
- Compact structure and reasonable design
- Electric winch is a kind of lifting equipment, which can be vertical, horizontal or inclined pulling heavy goods
- Cable pulling electric winch is used for hoisting and pulling the medium to heavy weight materials at construction sites or other work sites
- Suitable for construction and installation projects, mining area, factories etc.
- Color sandblast, premium painting finishing

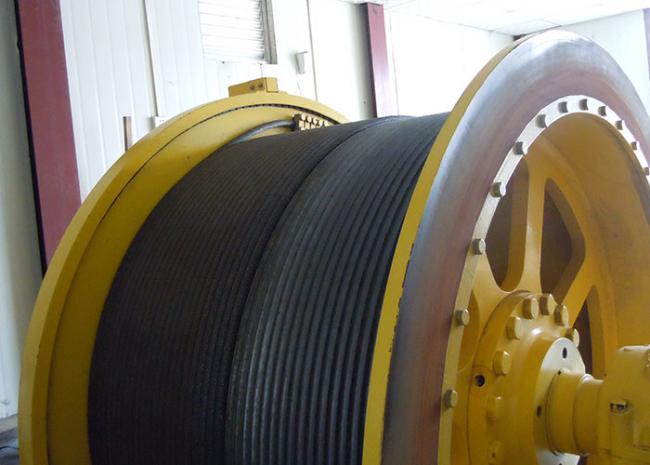

Drum structure:
Rotation Direction: Left or Right(as require)
Wire Rope Diameter: 3 MM~190 MM
Wire capacity:100-10000M
Processing equipment: CNC machining center
Durm Type: LBS spooling system - based on the unique geometry of the drum grooving
Drum rapid customization:
| Drum diameter | 350mm 600mm 750mm 900mm |
| Rope capacity | 50m 200m 450m 800m |
| Width between the flanges | 250mm 680mm 900mm 1200mm |
| Rope diameter |
12mm 15mm 18mm 22mm |
| Drum material | As your requirements |
Packing/delivery:
- Whole unit of electric winch packed with high quality plywood case
- Shipped in 10 days after payment
FAQ:
|
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
|
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc
|
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
|
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery.
|
