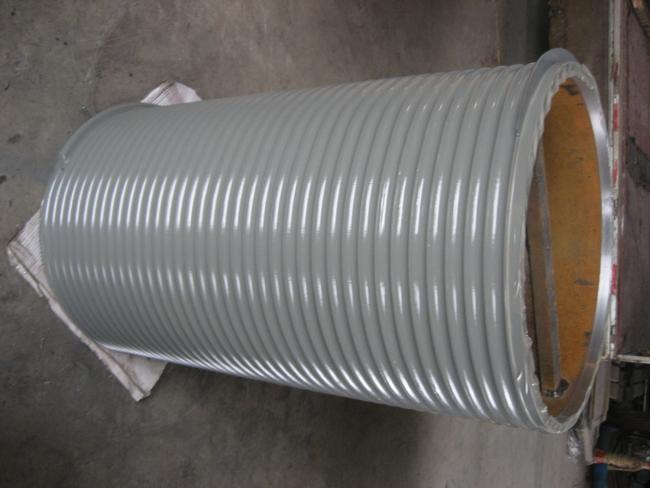

Stainless Steel Spiral Grooved Wire Rope Winch Drum 505mm Long ISO GJB Approved
Title:Spiral grooved Winch Drum with Diameter of 570mm and 505mm Long
Product structure:
Technical Parameters: (All of the parameter should be according to each product)
Processing equipment: CNC machining center
Rotation Direction: Left or Right
Wire Rope Diameter: 3 MM~190 MM
Product condition:New to order
About LBS grooved drum:
1.Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).
2.The drum and flanges are connected by welding.
3.According to customers’ requirements, the flanges are either welded or screw-bolted.
4.Groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
The relevant product ------LBS grooved sleeves
- the split-type LBS groove generally can be mounted on a smooth, grooveless drum-for for retrofit or where the drum needs to be replaced.
- The split -type sleeve system consists of a pair of outer casings that are bolted or assembled on a smooth light cylinder, so that the outer surface of the cylinder becomes a grooved form, and the split sleeve is composed of a spiral groove and a parallel groove, and the groove is formed. The design conforms to the specific rope structure, diameter and length.
Product detailed parameters:
1. Drum diameter
2. Width between flanges
3. Rope or cable diameter
4. Drum construction
5. Length of rope or cable to be accommodated
6. Distance to fixed sheave and position between flanges
7. Direction of wire rope entry
8. Outside diameter of flanges
9. Maximum operating load on rope or cable
10. A detailed drawing of the drum if possible
11. Type of rope entry through flange or through barrel
12. Radius barrel to flange
13. Any further information
FAQ:
|
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
|
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc
|
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
|
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery.
|
