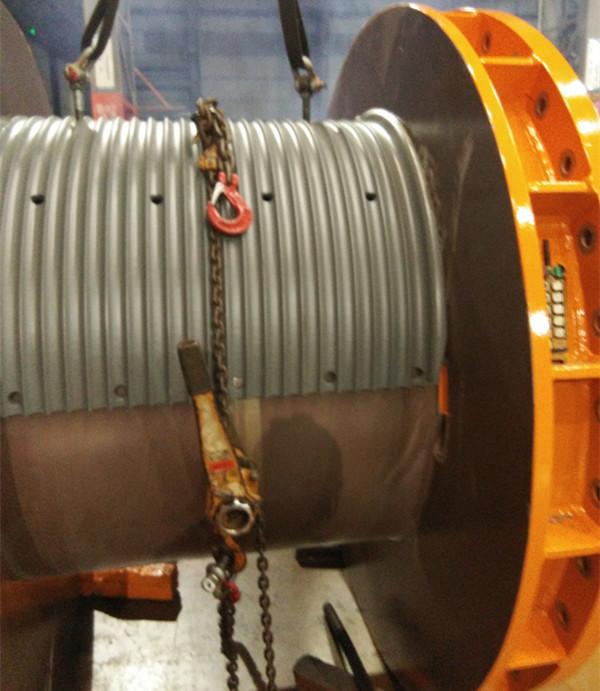

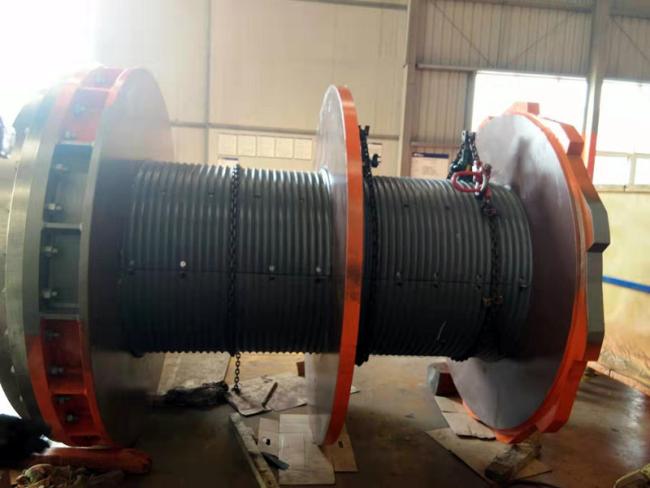

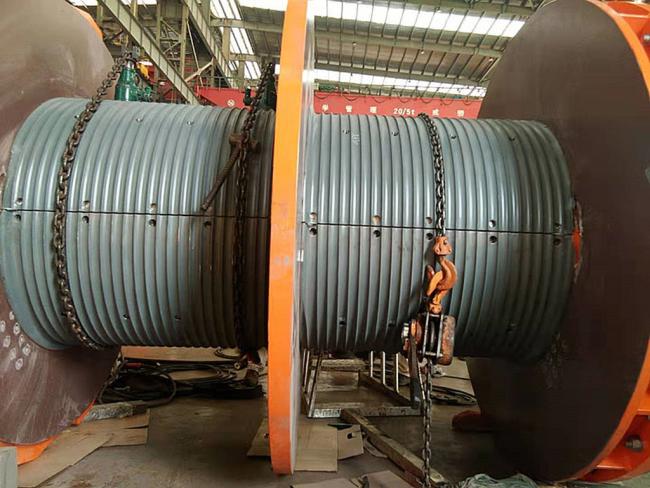

Spiral Slotted Two Rolls Wire Rope Winch Drum CE
Title:Wire rope drum spiral slotted two rolls/two rolls drum
Product introduction:
The wire rope drum screw is a machine that used to lift and down so as to clean walls. It is uaually installed on construction and marine ship. We have rich experience to process the reels. If the customer need one-reel , triple reels or more, we can customize the products for you.
| No.reel | reel diameter(mm) | rope diameter(mm) | width between the flanges(mm) |
| 1 | 100-800 | 5-50 | 100-800 |
| 2 | 200-800 | 10-90 | 100-800 |
| 3 | 400-1000 | 10-100 | 100-800 |
| 4 | 100-800 | 10-90 | 100-900 |
the customer need to provide the above parameters.
Product material:
There are carbon Steel ,stainless steel and other high strength steel like Q345B Q420,Q460,20GrMo,42GrMo etc.
Material standards: GB, AISI, ASME, ASTM, JIS DIN, NF, BS, EN ...
Classification societies certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR ...
Processing equipment: CNC machining center
Rotation Direction: Left or Right
Wire Rope Diameter: 3 MM~190 MM
Product condition:New to order
LBS Products Drum Feature:
Highly efficient, constant operating torque motor.
Smooth running over the entire speed range.
Compact structure and reasonable design
Safe and reliable function
FAQ:
|
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
|
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc
|
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
|
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery. |
