PLC Control PVC Pipe Production Line 16-630mm Twin Screw Extruder
Price:
USD EUR
MOQ:
1 SET
Delivery Time:
45 WORKING DAYS
Brand:
LB
Product Description
Conical Twin Screw Extruder With PLC control PVC Pipe Production Machine China Machine
Product Overview
This PLC-controlled PVC pipe production line is engineered for manufacturing UPVC and PVC pipes with various diameters and wall thicknesses. Ideal for agricultural and construction plumbing, water supply, and drainage applications.
Production Capabilities
Our machinery produces PVC pipes with diameters ranging from 16mm to 630mm, accommodating diverse industrial requirements.
Manufacturing Process
- PVC powder + additive mixing
- Spring feeding system
- Twin screw extrusion
- Mould and calibration
- Vacuum forming
- Haul-off machine processing
- Precision cutting
- Automated discharging
Technical Specifications
| Model | Pipe Diameter (mm) | Extruder Model | Motor Power (KW) |
|---|---|---|---|
| LB-63A | 16-63 | SJSZ51/105 | 22 AC |
| LB-63B | 16-63 (Double Pipe) | SJSZ65/132 | 37 AC |
| LB-160 | 50-160 | SJSZ65/132 | 37 AC |
| LB-250A | 63-250 | SJSZ65/132 | 37 AC |
| LB-250B | 63-250 | SJSZ80/156 | 55 AC |
| LB-315 | 110-315 | SJSZ80/156 | 55 AC |
| LB-630 | 315-630 | SJSZ92/188 | 110 DC |
Key Components
Mixer System
Features specialized design that reduces raw material self-friction, enhancing energy utilization efficiency. Operates with low noise and dust-free vacuum suction loading.
Features specialized design that reduces raw material self-friction, enhancing energy utilization efficiency. Operates with low noise and dust-free vacuum suction loading.

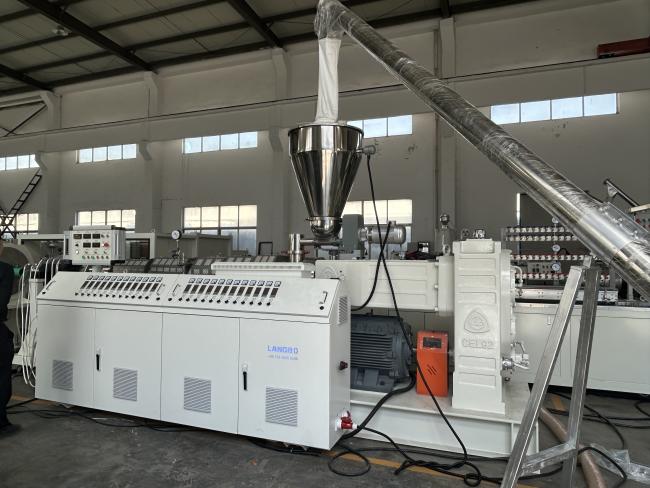

Twin Screw Extruder
Crafted with premium brand components for production stability, efficiency, and durability. Conical twin-screw design ensures homogeneous mixture, superior plastification, and optimal conveying efficiency.
Crafted with premium brand components for production stability, efficiency, and durability. Conical twin-screw design ensures homogeneous mixture, superior plastification, and optimal conveying efficiency.

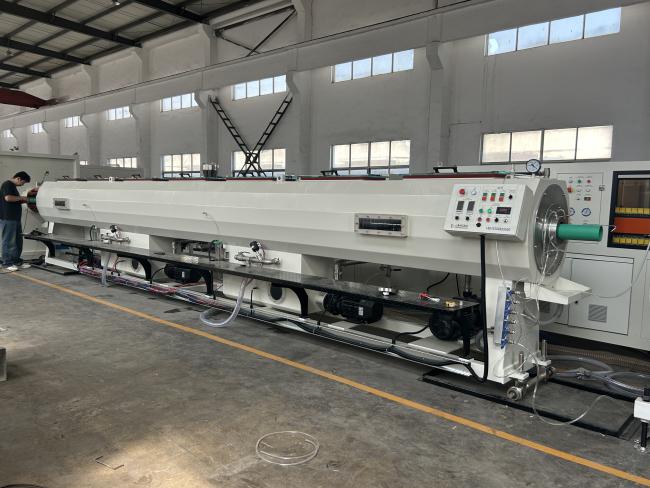

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling sections. Constructed with stainless 304 steel for both vacuum and spraying cooling tanks. Advanced vacuum system guarantees precise pipe sizing.
Two-chamber structure with vacuum calibration and cooling sections. Constructed with stainless 304 steel for both vacuum and spraying cooling tanks. Advanced vacuum system guarantees precise pipe sizing.

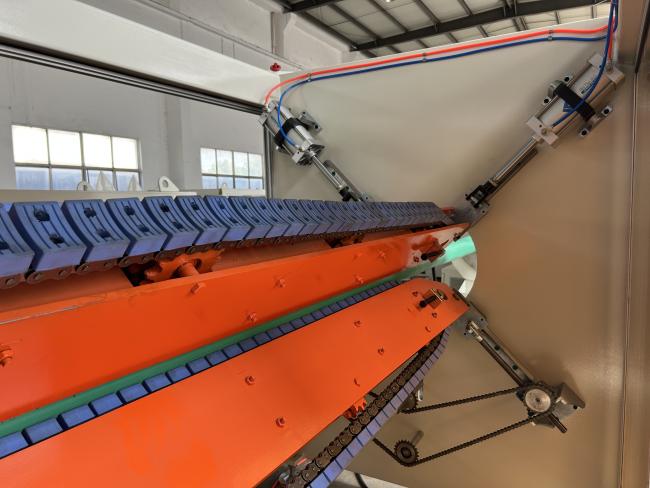

Haul-off Unit
Three-crawler track system ensures stable and steady pipe operation. Customizable hauling models adjustable through general control to meet specific production requirements.
Three-crawler track system ensures stable and steady pipe operation. Customizable hauling models adjustable through general control to meet specific production requirements.

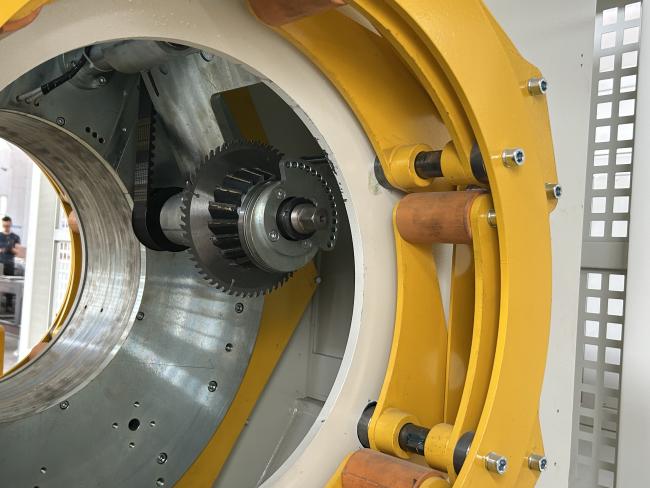

Cutting Unit
High-accuracy encoder provides precise and stable cutting lengths. PLC control system enables manual operation cutting for specific application needs.
High-accuracy encoder provides precise and stable cutting lengths. PLC control system enables manual operation cutting for specific application needs.
Production Line Images
Manufacturing Facility
Industry Exhibitions
Global Shipping
Customer Approval
