High Penetration X Ray Inspection Systems , X Ray Screening Equipment For Airport baggage x ray scanning machine
High Penetration X Ray Inspection Systems , X Ray Screening Equipment For Airport
Feature:
X-ray Generator
Generate direct: Upward
Generate angle: 60 degree
Anode Voltage: 80Kv
Anode power: 0.4 to 0.5mA
Cooling / Duty Cycle: Oil Cooling /100%

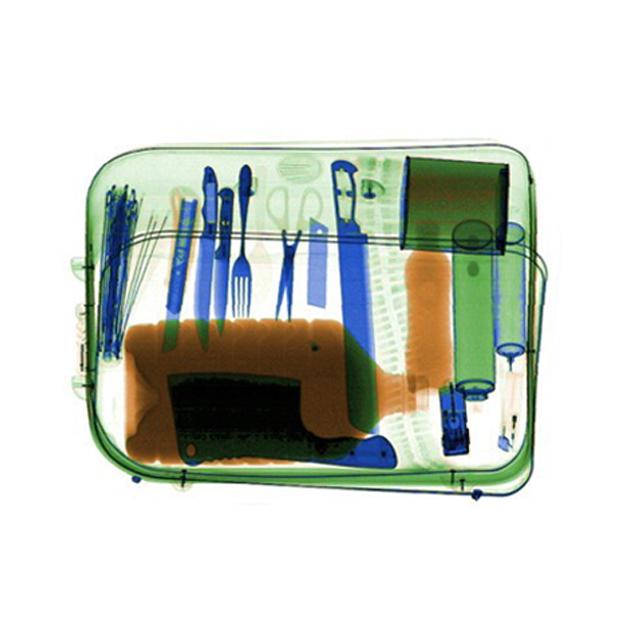

Image System
X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Specifications
| Tunnel Size | 500(W)×300(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 170kg |
| Dose per Inspection | less than 1.5 μGy/h |
| Wire Resolution | 38AWG |
| Spatial Resolution | Level: dia1.0mm, Vertical: dia1.3mm |
| Penetration | 34mm Stell |
| Film Safety | Guarantee ISO1600 Film |
| X ray Leakage | 0.05 μGy/h (at a distance of 5cm from frame house) |
| Monitor | 17inch Dell brand |
| Operation temperature/Humidity | 0°C-45°C/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20°C-60°C/20%-95%(non-condensing ) |
| Operation Power | 220VAC(±10%)50±3Hz |
|
Power Consumption Noise: |
1.0 KW (max), 0.3KW(working) less than 55db |
Keywords: x-ray machine prices, x-ray machine, x-ray machine cost, portable x-ray machine, baggage x-ray machine, x-ray baggage scanner, airport x-ray machines, x-ray machine types, industrial x-ray machine, used portable x-ray machine, x-ray equipment, cr x-ray system. hotal luggage scanner
our sales team can give feedback within 12 hours after receive your inquiry
our after sales team can give your technical support within 48 hours after your request
our engineer can go to aboard for technical support on big project
Our advantages:
1.14 years' experience with thousands of successful projects.
2. Advanced technology and innovation in design.
3.Professional production ensures high quality with competitive price.
4.Excellent after-sale service.
