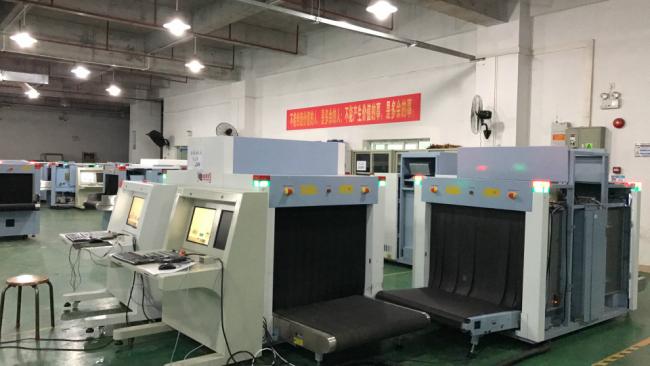

Less Leakage X Ray Scanning Machine 1.0 KW Life Longer For Government Office
Less Leakage X Ray Security Scanner Machine Life Longer For Government Office x ray baggage scanner machine
Usage and Application:
SE5030A is suitable for security checking the briefcase, hand luggage,parcel post, and small and medium-sized package. They are widely used in subway station, railway station, railway stations, customs, ports, office buildings,shopping malls, hotels, factories and gyms and other public places
Installation data
|
X-ray Leakage
|
Standard: <2uSv/h(0.2MR/h)
Optional: <1uSv/h(0.1MR/h)
|
|
Operating/Storage temperature
|
0~40℃/-20℃~+60℃
|
|
Humidity
|
10% ~90%(non-condensing)
|
|
Protection class system
|
IP20
|
|
Dimensions/Weight
|
1849(L)*871(W)*1259(H)[mm]/approx.310kg
72.8"(L)*34.3"(W)*49.6"(H)/approx.683.5lbs
|
|

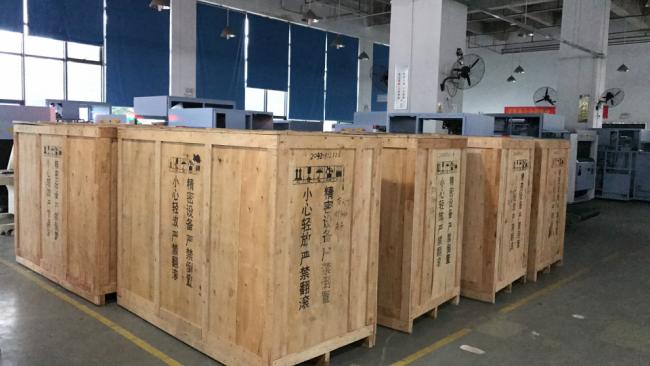

Packing size/Weight
|
1920(L)*1010(W)*1430(H)[mm]/approx.380kg
|
|
Mechanical construction
|
Steel contruction with aluminum panels, mounted on roller castors
|
Technocal Parameters:
|
Tunnel dimensions
|
500(W)*300(H)mm
|
|
Conveyor height/speed
|
800mm / 0.22m/s
|
|
Max. conveyor load
|
150kg
|
|
Resolution(wire recognition)
|
Dia 0.0787mm metal line
|
|
Penetration
|
>38mm steel
|
|
X-ray dose
|
<0.1μGy/h
|
|
Film safety
|
Guarantee ISO1600 Film
|
|
Cooling system/duty cycle
|
Oil-cooling/100%
|
|
Spatial Resolution
|
Level:dia. 1.0mm, Vertical:dia.1.0mm
|
|
Operation Power
|
220VAC(±10%)50±3Hz
|
|
Power Consumption
|
0.8kw(Max)
|
|
Beam divergence/ beam direction
|
80°
|
|
Number of X-ray detectors
|
896
|
|
Digitalization(dynamic resolution)
|
1440*900
|
|
Image memory(min.)
|
64G(store 500,000 pieces pictures in Real Time)
|
|
Monitor Resolution
|
High Resolution, LCD Accord, 19 inch
|
|
Computer Specification (min.)
|
CPU: Intel 2.7GHz dual core RAM: 4GB
HDD: 64GB (6.5GB used by system) OS: Win 7 32-bit
|
Advantage
◆Non-slip Rubustness Coveryor Belt, life longer
◆Double Deck Lead Curtain, less leakage
◆Scentific Rational Brief Modularity Design, easy to operate and maintain
◆UK Staker Detector Plate, Hamamatsu Searching Unit and Germany Spartacus Rollar, ensure machine's stability and efficiency
◆Use SSD Solid-state Storage Plate, more stable and more efficent
◆High-resolution display with Philips screen, three-color-models switchable
