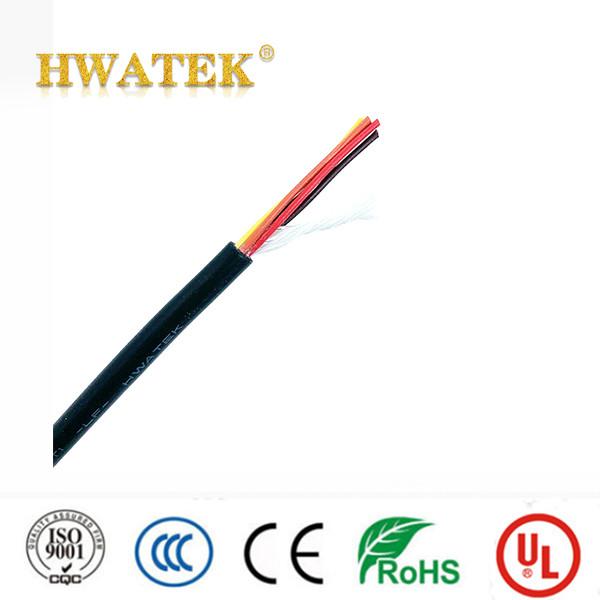

UL 20236 2C X 26AWG Tinned And Silver Plated Stranded Copper Insulation TPU Jacket RG 179 Cable
UL 20236 2C x 26AWG Tinned and Silver plated Stranded copper insulation TPU jacket RG 179 Cable
Product Description
| Construction | ||
| A:RG179 | B:2Cx26AWG | |
| Conductor | Silver plated copper | Tinned Stranded copper |
| Cross section | 30AWG | 26AWG |
| Construction | 7/0.102mm | 7/0.16mm |
| Strand Dia. | 0.31mm | 0.48mm |
| Insulation | PTFE | FEP |
| Nom.Thickness | 0.50mm | 0.15mm |
| Insulation Dia. | 1.60±0.05mm | 1.00±0.08mm |
| Insulation colour | white | B1.black, B2.red |
| Braid | Silver plated copper,0.10mm,≥90% | / |
| Inner jacket | FEP | / |
| Nom.Thickness | 0.25mm | / |
| Inner Dia. | 2.54±0.15mm | / |
| Colour | light brown | / |
| Filler | Optional | |
| Material | AL-mylar,≥25% | |
| Assembly | RG179+2C×26AWG +ABP | |
| Braid | Tinned copper,0.10mm,≥80% | |
| Material | Paper,≥25% | |
| Jacket | TPU(halogen-free) | |
| Nom.Thickness | 0.76mm | |
| Min.Thickness | 0.61mm | |
| Outer Dia. | 6.00±0.30mm | |
| Colour | black | |
Conductor Silver plated copper, Tinned Stranded copper
Cross section A:RG179 B:2Cx26AWG
Construction UL20236 RG179+2C×26AWG +ABP
Elongation ≥100%
Strand Dia.(Ref.) 0.31mm 0.48mm
Aged condition 113±1℃×168h
Insulation PTFE,FEP
Nom.Thickness 0.50mm 0.15mm
Insulation Dia. 1.60±0.05mm 1.00±0.08mm
Insulation colour
white
B1.black, B2.red
Assembly UL20236 RG179+2C×26AWG +ABP
Jacket TPU
Reference standard:UL62
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 6.00±0.30mm
Colour per request
| Electric Performance | ||
| Rated Temperature | -40~80℃ | |
| Voltage rating | 30V | |
| Max.conductor DC resistance(20℃) | A:381Ω/km B:150Ω/km | |
| Dielectric Strength AC | 0.5kV/1min | |
| Impedance(A) | 75±2Ω | |
| Capacitance(A) | 64±5pF/m | |
| Velocity radius(A) | 70% | |
| Attenuation(TBD.) | 100MHz | 29.3db/100m |
| 200MHz | 40.6db/100m | |
| 400MHz | 59.8db/100m | |
| 1000MHz | 97.2db/100m | |
| 1500MHz | 128.3db/100m | |
| 2000MHz | 145.5db/100m | |
