UL20002 TYPE PVC Tinned Copper Stranded 2C×26AWG (19/0.1T ) 105℃ 30V industrial Cable
Price:
Negotiable
MOQ:
1000
Delivery Time:
4 Weeks
Brand:
HWATEK
Product Description
UL20002 TYPE PVC Tinned Copper Stranded 2C×26AWG (19/0.1T ) 105℃ 30V industrial Cable
Product Description
| Construction | ||||
| Conductor | Tinned copper stranded | |||
| Cross section | 26AWG | |||
| Construction | 19/0.10mm | |||
| Strand Dia.(Ref.) | 0.50mm | |||
| Insulation | SR-PVC | |||
| Nom.Thickness | 0.23mm | |||
| Min.Thickness | 0.18mm | |||
| Insulation Dia. | 1.00±0.08mm | |||
| Insulation colour | 1.black 2.brown | |||
| Assembly | 2C×26AWG | |||
| Jacket | PVC | |||
| Nom.Thickness | 0.76mm | |||
| Min.Thickness | 0.61mm | |||
| Outer Dia. | 3.60±0.20mm | |||
| Colour | Black | |||
Technical Specifications
| Electric Performance | ||||||
| Rated Temperature | 105℃ | |||||
| Voltage rating | 30V | |||||
| Max.conductor DC resistance(20℃) | 150Ω/km | |||||
| Dielectric Strength AC | 0.5kV/1min | |||||
Construction Details
- Conductor: Stranded tinned or bare copper
- Insulation: SR-PVC
- Jacket: PVC
Standards Compliance
- International: UL758, UL1581, UL2556, IEC60228 CL6
- RoHS, REACH Compliant
Technical Data
- Rated voltage: 30 V
- Rated Temperature: 105ºC
- Voltage withstand test: AC 0.5kV/1min
Company Profile

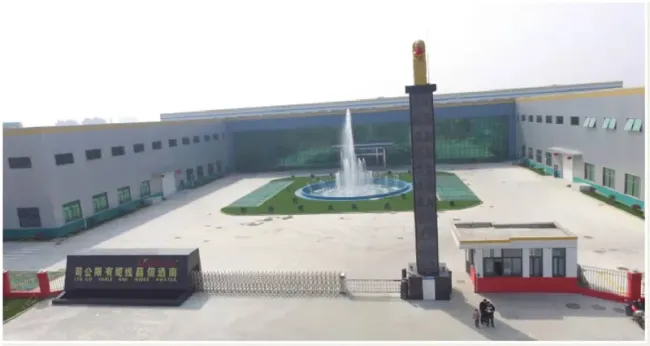

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certifications
Production Process
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We do produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
