UL 20549 tinned copper stranded 4C X 22AWG 300V 80C VW-1 TPU jacket cable
| ITEM | 4C×22AWG+W | ||||
| CONDUCTOR | Material | Tinned copper stranded | |||
| Size | 19/0.16mm | ||||
| O.D.(Ref) | 0.80mm | ||||
| INSULATION | Material | TPE | |||
| Min.average thickness | 0.23mm | ||||
| Min.thickness at any point | 0.18mm | ||||
| O.D. | 1.30±0.10mm | ||||
| CABLING | Fillers | Optional | |||
| Material | Non-woven | ||||
| Assembly | 4C×22AWG+W | ||||
| JACKET | Material | TPU | |||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 5.00±0.50mm | ||||
UL758 & UL1581 & CSA C22.2 No.210
- Excellent insulation performance with stable chemical properties
- Passes UL VW-1 and CSA FT1 vertical flame test
- Heat resistant, anti-acid, and environmentally friendly
- Tinned or bare copper, 4C x 22AWG
- TPE insulation
- Two or more single-core wires twisted or cabled together
- Tinned or bare copper wire with spiral or braid shield or Al-mylar wrapped shield
- TPU jacket
- Insulation : 1.Blue 2.Black 3.White 4.Brown
- Jacket:Black
Rated temperature: -30 to 80°C
Rated Voltage: 300V

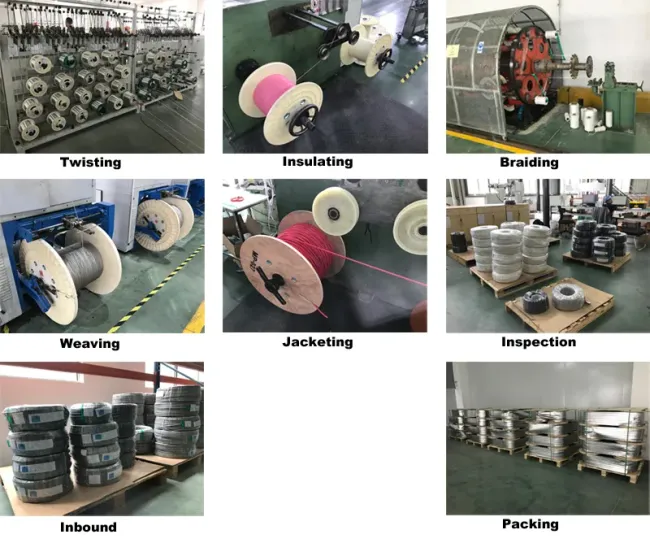

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
A: Yes, we are willing to arrange samples for you.
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
