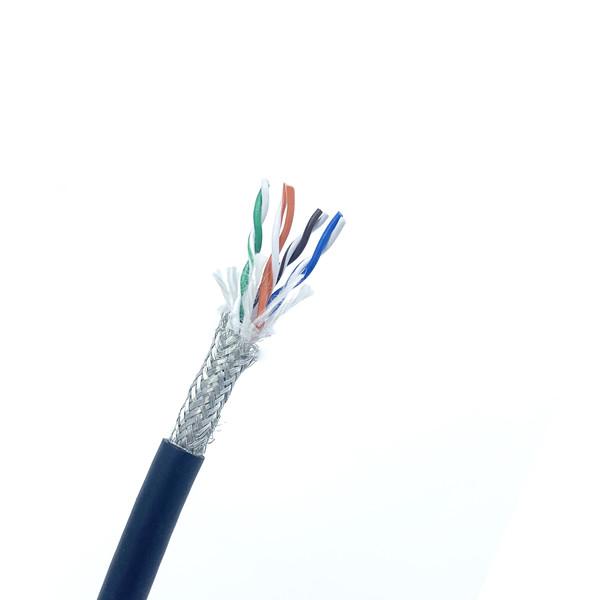

UL2587 TYPE PVC insulation Tinned Copper Stranded PVC Sheath 2P×20AWG 90℃ 600V high Voltage cable
| Construction | |||||
| Conductor | Tinned copper standard | ||||
| Cross section | 2P×20AWG | ||||
| Construction | 65/0.10mm | ||||
| Strand Dia.(Ref.) | 0.93mm | ||||
| Insulation | PVC | ||||
| Nom.Thickness | 0.23mm | ||||
| Min.Thickness | 0.18mm | ||||
| Insulation Dia. | 1.40±0.08mm | ||||
| Insulation colour | 1.black&red 2.white&green | ||||
| Twisted(Ref.) | 2.80mm | ||||
| Filler | Optional | ||||
| Material | Al-mylar | ||||
| Assembly | 2P×20AWG+A | ||||
| Jacket | PVC | ||||
| Nom.Thickness | 0.76mm | ||||
| Min.Thickness | 0.61mm | ||||
| Outer Dia. | 6.50±0.30mm | ||||
| Colour | per request | ||||
| Mechanical Performance | ||||||
| Jacket | ||||||
| Material | PVC | |||||
| Tensile strength | ≥10.3MPa | |||||
| Elongation | ≥100% | |||||
| Aged condition | 121±1℃×168h | |||||
| Percent of original tensile strength | ≥70% | |||||
| Percent of original elongation | ≥65% | |||||
Insulation:PVC
Conductor : Tinned copper stranded
Construction:65/0.10mm
Jacket : per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL2587
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: 90℃
Voltage withstand test:AC 2.0 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
