UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles
Price:
Negotiable
MOQ:
1,000
Delivery Time:
4 Weeks
Brand:
HWATEK
Product Description
UL Certified EVE EVT EVJE EVJT Electric Vehicle Charging Cable

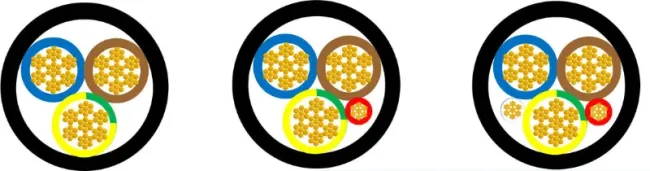

Structure Diagram
Reference Standards
UL62 CSA C22.2 No.49
Product Categories
EVE / EVT
18AWG-500cmil, ≥2 Cores
18AWG-500cmil, ≥2 Cores
EVJE / EVJT
18AWG-12AWG, 2-6 Cores
18AWG-12AWG, 2-6 Cores
Construction Specifications
Rated Temperature
-40°C to +105°C
-40°C to +105°C
Rated Voltage
300V (EVJE, EVJT)
600V (EVE, EVT)
300V (EVJE, EVJT)
600V (EVE, EVT)
Conductor
Stranded bare or tinned copper
Stranded bare or tinned copper
Insulation Material
TPE/PVC
TPE/PVC
Sheath Material
TPE/PVC
TPE/PVC
Performance Features
- Cold resistance
- Abrasion resistance
- Oil resistance
- Water resistance
- UV resistance
- Passes VW-1 flame test
- Excellent resistance to flame propagation
Applications
Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameter Table
| Category | Wire Specifications | Reference Current (A) | Diameter (mm) |
|---|---|---|---|
| UL:EVE,EVT 600V | 3×16AWG | 12 | 10.8 |
| UL:EVE,EVT 600V | 3×14AWG | 16 | 13.4 |
| UL:EVE,EVT 600V | 3×12AWG | 23 | 14.2 |
| UL:EVE,EVT 600V | 3×10AWG | 32 | 16.2 |
| UL:EVE,EVT 600V | 3×16AWG+1×18AWG | 12 | 11.4 |
| UL:EVE,EVT 600V | 3×14AWG+1×18AWG | 16 | 13.6 |
| UL:EVE,EVT 600V | 3×12AWG+1×18AWG | 23 | 14.3 |
| UL:EVE,EVT 600V | 3×10AWG+1×18AWG | 32 | 15.9 |
| UL:EVE,EVT 600V | 3×8AWG+1×18AWG | 46 | 21.8 |
| UL:EVE,EVT 600V | 2×8AWG+10AWG+18AWG | 46 | 20.9 |
| UL:EVE,EVT 600V | 2×6AWG+8AWG+18AWG | 63 | 23.1 |
| UL:EVE,EVT 600V | 2×4AWG+6AWG+18AWG | 75 | 26.5 |
| UL:EVE,EVT 600V | 2×2AWG+4AWG+18AWG | 100 | 30.1 |
| UL:EVE,EVT 600V | 3×16AWG+2×18AWG | 12 | 12.1 |
| UL:EVE,EVT 600V | 3×14AWG+2×18AWG | 16 | 13.9 |
| UL:EVE,EVT 600V | 3×12AWG+2×18AWG | 23 | 15.0 |
| UL:EVE,EVT 600V | 3×10AWG+2×18AWG | 32 | 16.6 |
| UL:EVE,EVT 600V | 2×8AWG+10AWG+2×18AWG | 46 | 21.9 |
| UL:EVE,EVT 600V | 2×6AWG+8AWG+2×18AWG | 63 | 24.8 |
| UL:EVJE,EVJT 300V | 3×16AWG | 12 | 8.2 |
| UL:EVJE,EVJT 300V | 3×14AWG | 16 | 9.0 |
| UL:EVJE,EVJT 300V | 3×12AWG | 23 | 10.1 |
| UL:EVJE,EVJT 300V | 3×16AWG+1×18AWG | 12 | 8.8 |
| UL:EVJE,EVJT 300V | 3×14AWG+1×18AWG | 16 | 9.5 |
| UL:EVJE,EVJT 300V | 3×12AWG+1×18AWG | 23 | 11.2 |
| UL:EVJE,EVJT 300V | 3×16AWG+2×18AWG | 12 | 9.5 |
| UL:EVJE,EVJT 300V | 3×14AWG+2×18AWG | 16 | 12.1 |
| UL:EVJE,EVJT 300V | 3×12AWG+2×18AWG | 23 | 13.2 |
1. Detailed dimensions are subject to product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. Sheath color is generally black or orange. Custom colors available upon request.
Company Profile

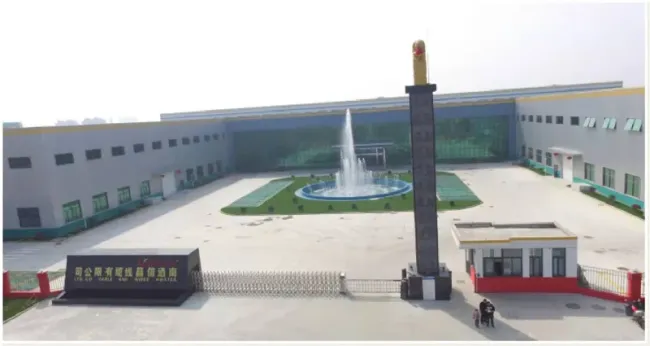

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Quality Certifications
We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certificates. All products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.
Management Philosophy
Operating with global customers through our well-established sales system based on the principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certificates & Quality Assurance

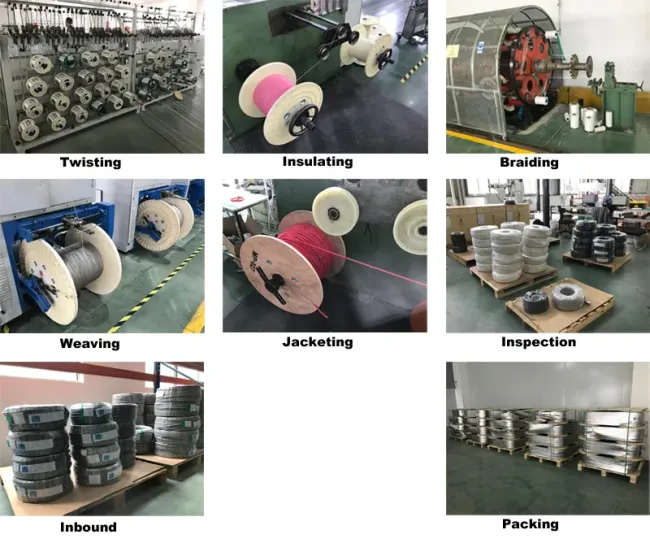

Production Process
Shipping & Logistics
Frequently Asked Questions
What products do you supply?
Consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
What certificates do you hold?
UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Can we get samples before ordering?
Yes, we are willing to arrange samples for you.
Yes, we are willing to arrange samples for you.
What is your lead time?
Normally 2-3 weeks, 5-6 weeks during peak season.
Normally 2-3 weeks, 5-6 weeks during peak season.
How do you guarantee product quality?
Pre-production samples before mass production and final inspection before shipment.
Pre-production samples before mass production and final inspection before shipment.
