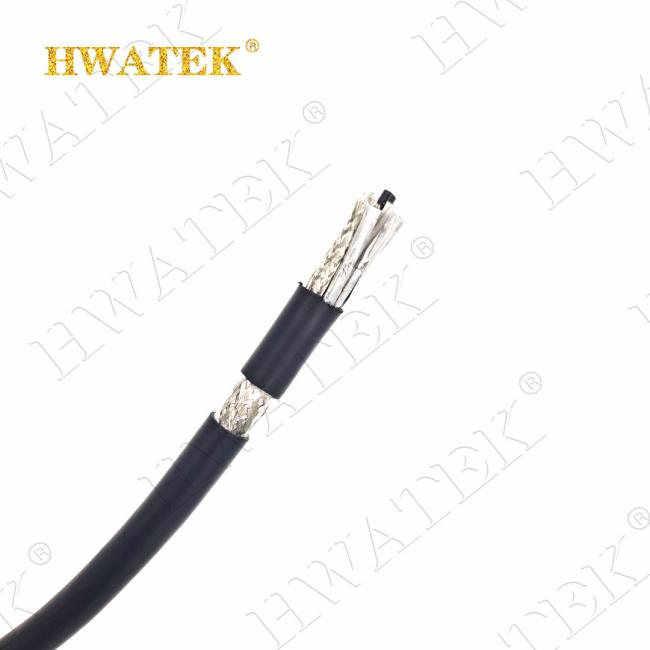

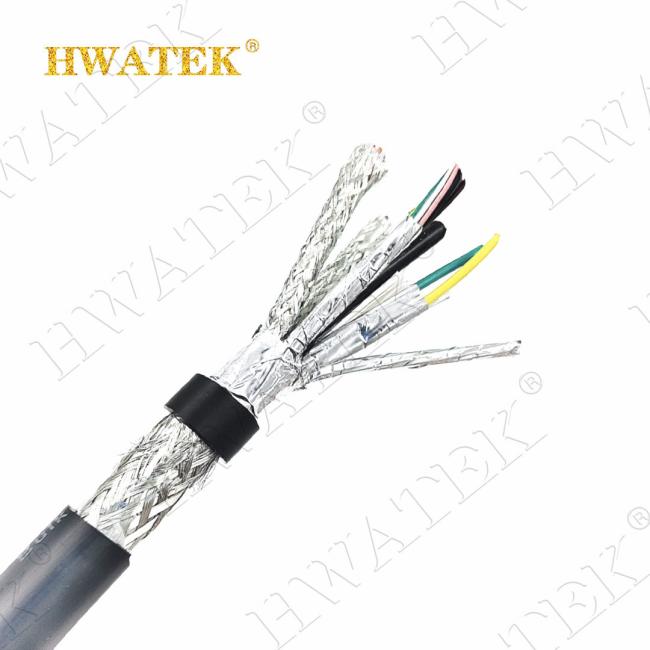

UL20276 Tinned Copper Stranded 6C×28AWG+ 1P x 28AWG braided 80℃ 30V PP insulation PVC jacket Cable
Price:
Negotiable
MOQ:
1000
Delivery Time:
4 Weeks
Brand:
HWATEK
Product Description
UL20276 Tinned Copper Stranded 6C×28AWG+ 1P x 28AWG braided 80℃ 30V PP insulation PVC jacket Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: industrial
Product character:
Flame rated : VW-1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
Advantages
- High flexibility with excellent bending capability
- Oil resistant construction
- UV resistant for outdoor use
- High flame resistance
- Moisture-proof design
Construction Details
Conductor: Stranded, tinned or bare copper
Insulation: Thermoplastic Elastomer
Assembly: 10~70 (2~5 cores) + 0.5~0.75P (1~10 cores)
Additional: Non-woven wrap
Sheath: PVC
Insulation: Thermoplastic Elastomer
Assembly: 10~70 (2~5 cores) + 0.5~0.75P (1~10 cores)
Additional: Non-woven wrap
Sheath: PVC
Standards
International: UL20276
RoHS,REACH Compliant,
Technical data
Rated voltage:30V
Rated Temperature: 80℃
Flame: VW-1
Voltage withstand test:AC 0.5 kV/1min
| ITEM | A:1P×28AWG | B:6C×28AWG | |||
| CONDUCTOR | Material | Tinned copper stranded | |||
| Size | 7/0.127±0.008mm | 7/0.127±0.008mm | |||
| O.D.(Ref) | 0.38mm | 0.38mm | |||
| INSULATION | Material | PP | PP | ||
| Min.average thickness | 0.23mm | 0.23mm | |||
| Min.thickness at any point | 0.18mm | 0.18mm | |||
| O.D. | 0.90±0.05mm | 0.90±0.05mm | |||
| TWISTED | O.D.(Ref) | 1.80mm | / | ||
| CABLING | Material | Al-mylar(Foil facing out,≥25%) | |||
| Assembly | 1P×28AWG+6C×28AWG | ||||
| BRAID | Material | Tinned copper | |||
| Size | 16/6/0.10±0.008mm(85% min.) | ||||
| JACKET | Material | PVC | |||
| Min.average thickness | 1.00mm | ||||
| Min.thickness at any point | 0.80mm | ||||
| O.D. | 6.50±0.20mm | ||||
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:30V | |
| Rated temperature:-30-80℃ | |
| Max. DC conductor resistance(20℃) | |
| A&B:239Ω/km | |
| Voltage withstand test:AC 0.5kV/min | |
| Cold bending:-30±1℃×1H,no cracke | |

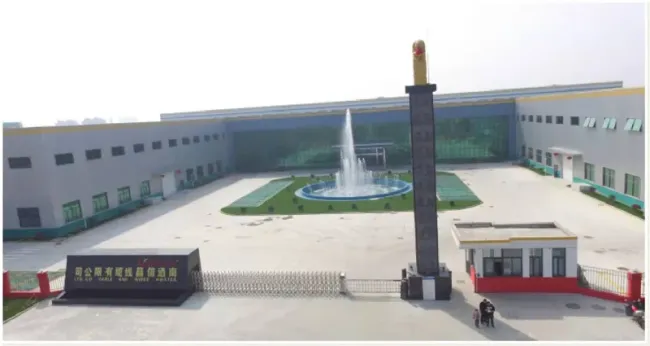

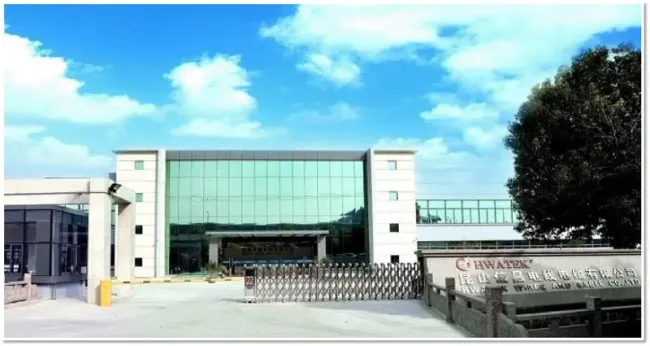

Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, with all products passing CCC, UL, CUL, CE, CSA, and ETL safety standards. Our global customer relationships are built on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certifications

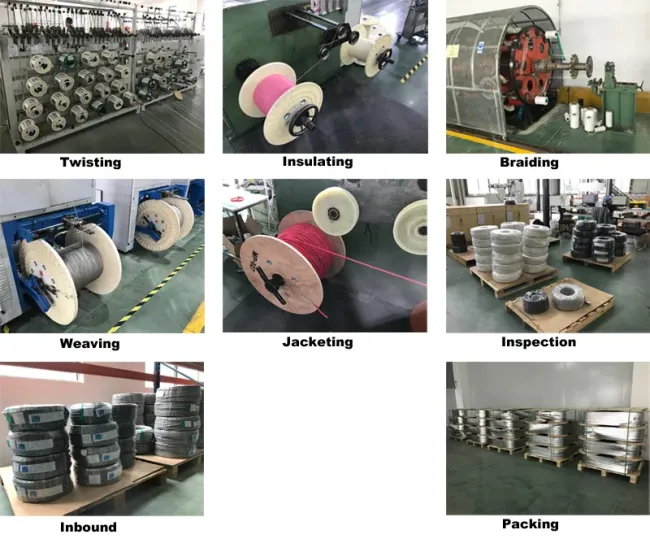

Production Process
