Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable
Price:
Negotiable
MOQ:
1,000
Delivery Time:
4 Weeks
Brand:
HWATEK
Product Description
Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable
Key Advantages
- UV resistant for outdoor applications
- High-flame resistance
- Moisture-proof protection
Application Range
- Medical Robotics
Cable Construction
Conductor: Stranded, tinned or bare copper
Insulation: TPE
Assembly: 10~70(2~5 cores) + 0.5~0.75P(1~10 cores)
Non-woven wrap
Sheath: PVC
Insulation: TPE
Assembly: 10~70(2~5 cores) + 0.5~0.75P(1~10 cores)
Non-woven wrap
Sheath: PVC
Compliance Standards
ISO10993
RoHS Compliant
REACH Compliant
RoHS Compliant
REACH Compliant
Technical Specifications
| ITEM | A : 3×(1P×28AWG+AB) | B :(4C×28AWG+A) | B :(1P×20AWG+A) | ||||
| CONDUCTOR | Material | Tinned copper stranded | |||||
| Size | 19/0.08mm | 19/0.08mm | 65/0.10mm | ||||
| O.D.(Ref) | 0.40mm | 0.40mm | 0.93mm | ||||
| INSULATION | Material | TPE | |||||
| Nom. thickness | 0.15mm | 0.15mm | 0.15mm | ||||
| O.D. | 0.80±0.08mm | 0.80±0.08mm | 1.30±0.08mm | ||||
| CABLING-1 | O.D. | 1.60mm | Nom.1.95mm | 2.60mm | |||
| Material | Al-mylar(face in) | Al-mylar(face in) | Al-mylar(face in) | ||||
| BRAID | Material | Tinned copper | / | / | |||
| Size | 0.08mm,≥90% | ||||||
| INNER JACKET | Material | TPE | |||||
| Nom. thickness | 0.30mm | ||||||
| O.D. | 2.70±0.10mm | ||||||
| CABLING-2 | Filler | Solid bar | |||||
| Material | Al-mylar(face out) | ||||||
| Assembly | 3×(1P×28AWG+A)+(4C×28AWG+A)+(1P×20AWG+A)+AB | ||||||
| BRAID | Material | Tinned copper | |||||
| Size | 0.10mm,≥90% | ||||||
| JACKET | Material | PVC | |||||
| Nom. thickness | 0.70mm | ||||||
| Min.thickness at any point | 0.63mm | ||||||
| O.D. | 9.00±0.30mm | ||||||
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:30V | |
| Rated temperature:80℃ | |
| Max. DC conductor resistance(20℃): | |
| A: 239Ω/km B: 239Ω/km C:37.6Ω/km | |
| Voltage withstand test:AC 0.50kV/1min |
Company Profile

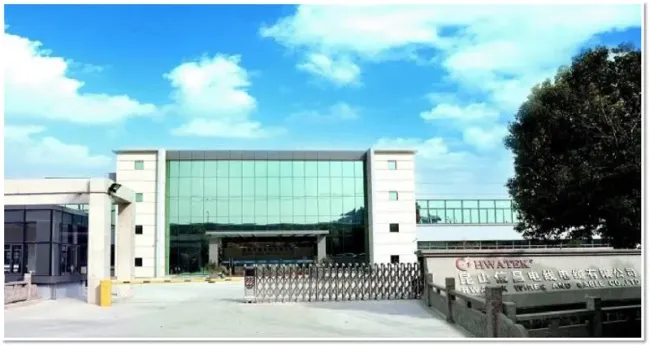

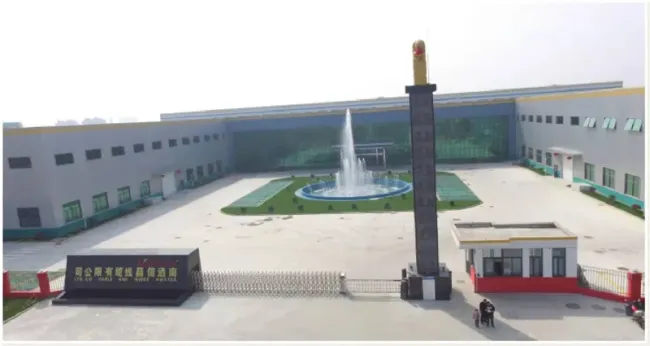

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various fields through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certifications

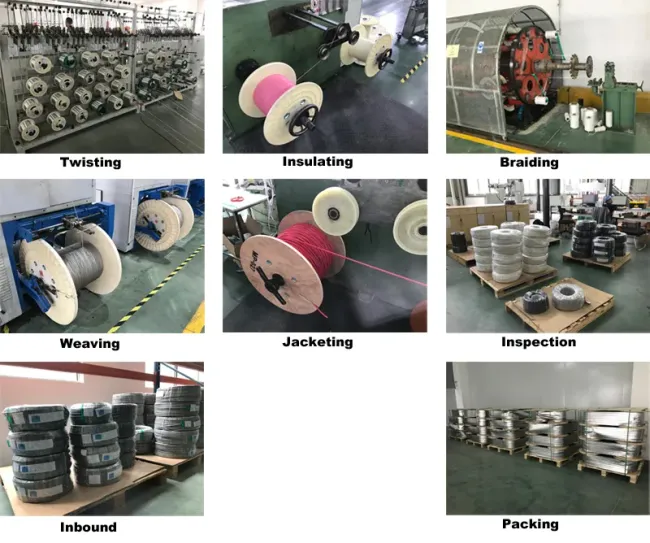

Production Process
Shipping & Logistics
Frequently Asked Questions
What products do you supply?
We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
What certifications do you hold?
We have UL, CE, 3C, Dekra, CQC, TUV, RoHS, Reach, and ETL certificates.
Can we get samples before ordering?
Yes, we are willing to arrange samples for you.
What is your lead time?
Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
How do you guarantee product quality?
We provide pre-production samples before mass production and conduct final inspection before shipment.
Major Customers

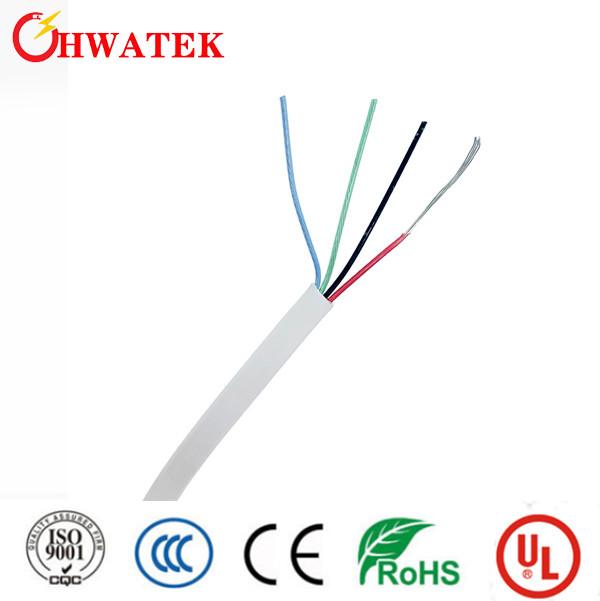

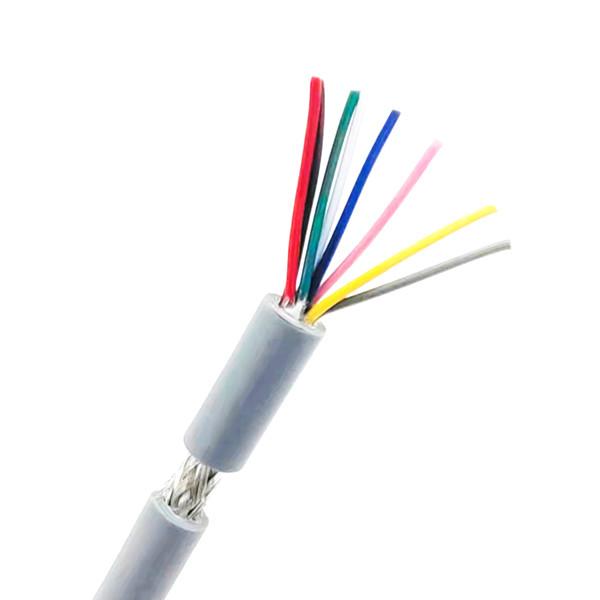

Similar Products
