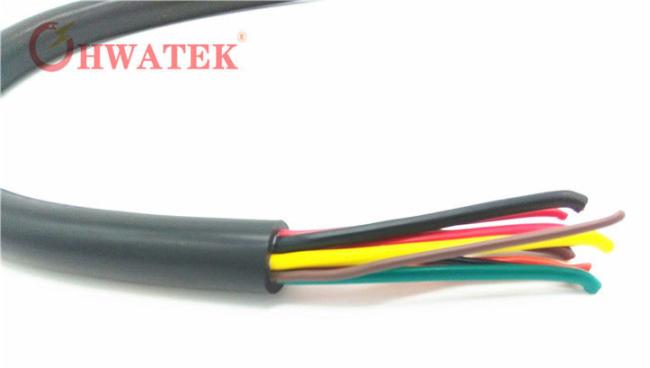

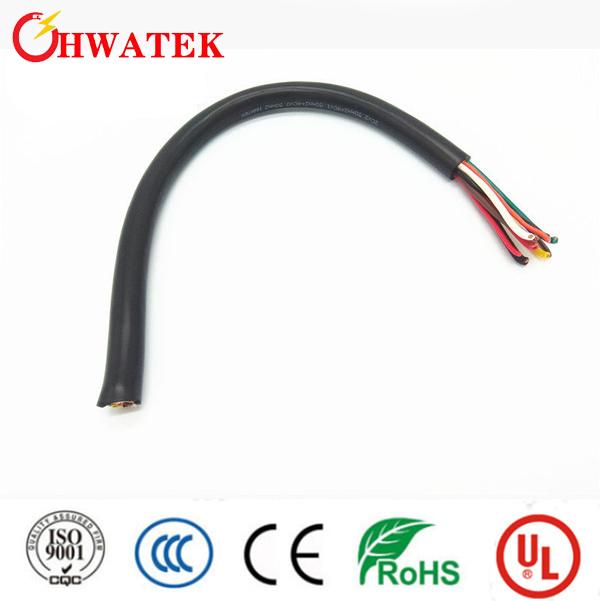

UL20276 8C×28AWG+AB Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation and PVC Jacket for 30V 80℃ Applications

UL20276 8C×28AWG+AB Tinned copper stranded Industrial Flexible Cable wIth SR-PVC Insulation PVC Jacket

Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Insulation:SR-PVC
Conductor : Tinned copper stranded
Construction
Insulation: 1.black 2.blue 3.red 4.white 5.orange 6.green 7.gray 8.yellow
Jacket Color : per request


Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International:UL20276
RoHS


Technical data
Rated voltage:30V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):239Ω/km
Dielectric Strength AC:2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
Flexible
