SJT, SJTW,300V, 105℃, UV resistance, moisture resistance, VW-1,PVC insulated elevator machine room wiring-power cable

1.Product Introduction with  SIT or SJTW

The wiring in the elevator machine room with a rated voltage of 300V-the power cable is composed of copper conductor, insulation, filling, tape, shielding and outer sheath. The cable has the characteristics of high flexibility, high temperature resistance, flame retardant, etc., and meets the requirements of outdoor use and special places: moisture resistance, UV resistance, and oil resistance. At the same time, all materials of the cable comply with the latest environmental protection standards of RoHS&Reach.

2.Characteristicwith with SIT or SJTW

3.Application field with SIT or SJTW

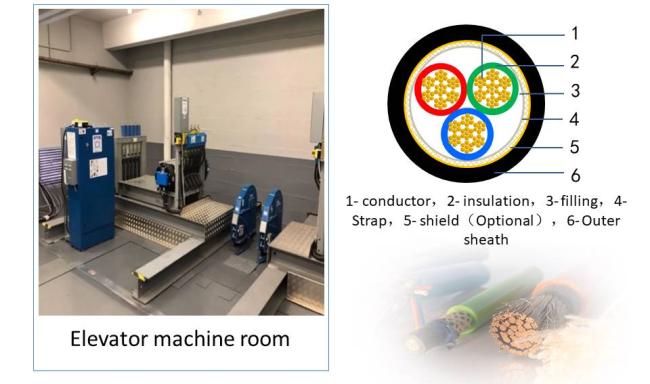

Mainly used for fixed installation of transmission cables in elevator machine rooms.

Line: distribution box→control cabinet power line, control cabinet→motor power line

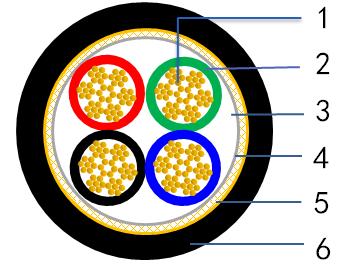

4.Structure diagram with SIT or SJTW

1- conductor,2- insulation,3- filling,4- Strap,5- shield(Optional),6- Outer sheath

Printing:E366579  TYPE SJTW ***AWG 105℃ 300V VW-1 HWATEK

5.Basic Information with SIT or SJTW

Conductor : Solid or Stranded
Insulation: Special mixed PVC

Shield or Braid: optional

Jacket: Special mixed PVC

6.Implementing standards with SIT or SJTW
International: UL62 , UL1581

RoHS,REACH Compliant,

7.Technical data with SIT or SJTW

Rated voltage:300V

Rated  Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

8.Specifications with SIT or SJTW

Remark 1: The detailed dimensions and technical parameters are subject to our product specifications.

The above products are non-shielded standard models, and can also be customized according to customer requirements or actual usage.

9.Certificates with SIT or SJTW

UL, CUL, CE

10.Packing and Shipping with SIT or SJTW

• The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
• If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
• Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
• The cargo, manufacturer, packing details will be labeled on the outer packing;
• About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
• Shipping term, It depends on the value of the goods and the will of the customer.

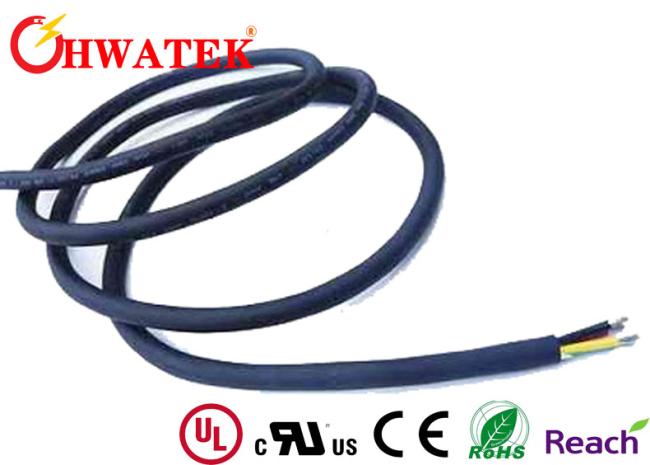

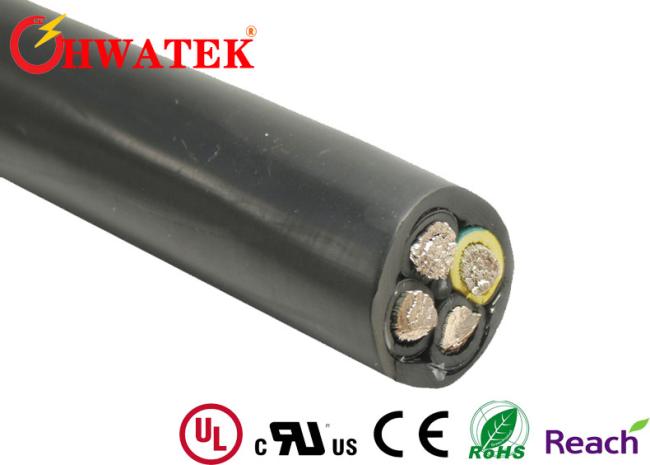

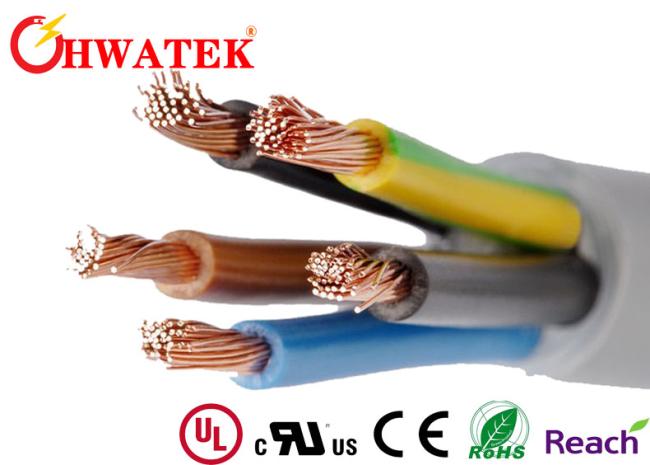

10.More pictures with SIT or SJTW
