IEC 62893 2C×25mm2+1C×25mm2+(6C×0.75mm2+W) EV CABLE

A: 2C×25mm2 B:1C×25mm2 C:6C×0.75mm2 Jacket
Conductor Bare copper stranded Material EVM-1
Cross section 25mm2 25mm2 0.75mm2 Tensile strength ≥20MPa
Construction 798/0.20mm 798/0.20mm 40/0.15mm+Tinsel+ Kevlar Elongation ≥300%
Strand Dia.(Ref.) 7.00mm 7.00mm 1.30mm Aged condition 110±1℃×168h
Insulation EVI-2 Percent of original tensile strength ±30%
Nom.Thickness 1.00mm 1.00mm 0.40mm Percent of original elongation ±30%
Min.Thickness 0.80mm 0.80mm 0.32mm
Insulation Dia. 9.30±0.40mm 9.30±0.40mm 2.20±0.05mm
Insulation colour 1.red 2.blue yellow/green
1.black 2.red 3.white 4.green
5.orange 6.blue
Filler
/ / Cotton
Tape / / Non woven,≥25%
Filler
PP rope
Tape
Non woven,≥25%
Remark
Assembly
2C×25mm2+1C×25mm2+(6C×0.75mm2+W)+W
Jacket
EVM-1
Reference standard:IEC 62893
Nom.Thickness
1.70mm
Min.Thickness
1.36mm
Outer Dia.
25.5±1.50mm
Colour
per request

Certification Body:

General Administration of Quality Supervision, Inspection and Quarantine

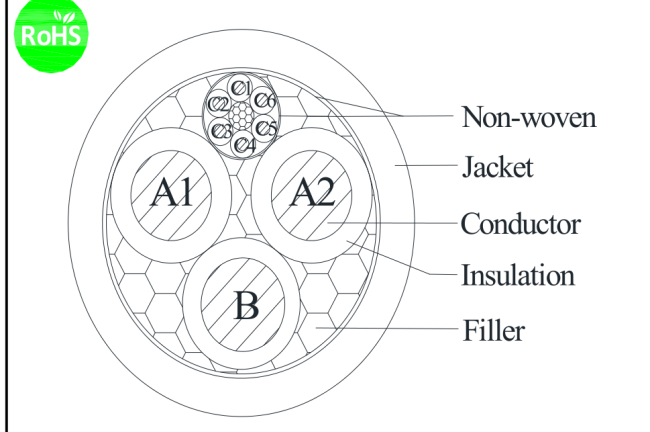

structure diagram:

Reference standard:GB/T 33594-2017

Product Category:

Product Category:

AC:EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)

Structural parameter table:

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
