22AWG Industrial Cable 0.34mm2 600V Lsoh XLPE Insulated Tinned Copper
22AWG Wire Cable 0.34mm2 600V Lsoh XLPE Insulated Tinned Copper Stranded
Product Description
| ITEM | 2C×22AWG(17/0.16T) | ||||
| CONDUCTOR | Material | Tinned copper stranded | |||
| Size | 17/0.16+0.004/-0.008mm | ||||
| O.D.(Ref) | 0.76mm | ||||
| INSULATION | Material | LSOH(XLPE) | |||
| Min.average thickness | 0.38mm | ||||
| Min.thickness at any point | 0.33mm | ||||
| O.D. | 1.60±0.08mm | ||||
| CABLING | Filler | PP rope | |||
| Material | AL-mylar(facing foil out) | ||||
| Assembly | 2C×22AWG(17/0.16T) | ||||
| BRAID | Material | Tinned copper | |||
| Size | 16/6/0.10mm(Coverage:Min.80%) | ||||
| JACKET | Material | LSOH(XLPE) | |||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 5.30±0.20mm | ||||
| ELECTRICAL CHARACTERISTICS | PHYSICAL PROPERTIES | ||||
| Rated voltage:600V | Tensile strength: | ≥9MPa | |||
| Rated temperature:-40~105ºC | Elongation: | ≥120% | |||
| Max. DC conductor resistance(20ºC):59.4Ω/km | Aged condition: | 135±2ºC×168h | |||
| Voltage withstand test: | Percent of original tensile strength: | ≥70% | |||
| Core-Core AC 2.5kV/5min | Percent of original elongation: | ≥70% | |||
| Core-Shield AC 2kV/5min | Cold Bend(-40±1ºCX4hrs) | No Crack | |||
| Flame Test | IEC60332-1 | ||||
| Low smoke | IEC61034 | ||||
| Non-halogen | IEC60754 | ||||

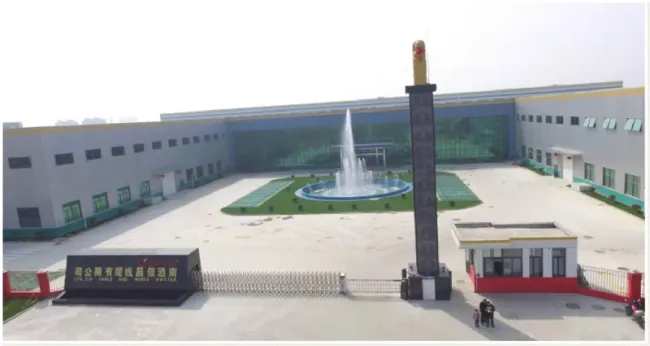

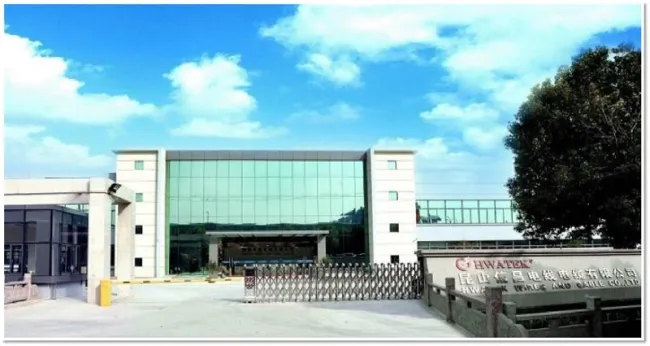

Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

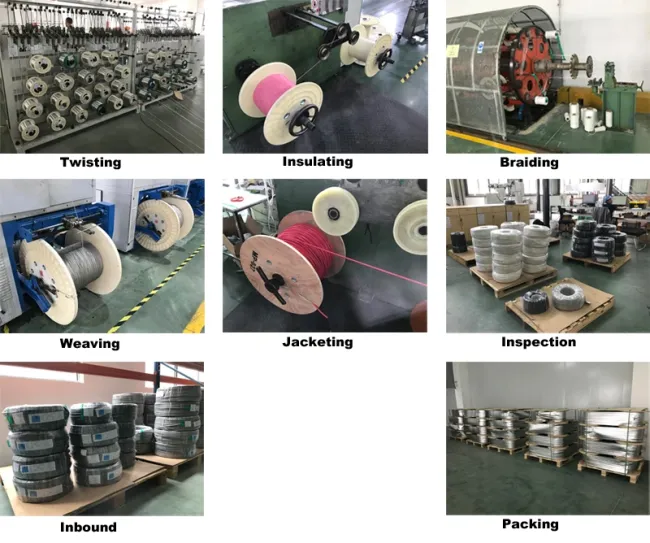

Production Progress
Shipping
FAQ
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
