FT2 HWATEK EV Charging Cable E473281 EVE 2Cx8AWG+1Cx10AWG +2Cx18AWG 600V
EV Charging Cable E473281 (UL) EVE 2C×8AWG+1C×10AWG +2C×18AWG 600V 105℃ FT2 HWATEK Cable
Product Description
Reference standard:UL62 CSA C22.2 No.49
Product Category:
EVE / EVT (18AWG-500cmil,＞=2Cores)
EVJE / EVJT (18AWG-12AWG,2-6 Cores)

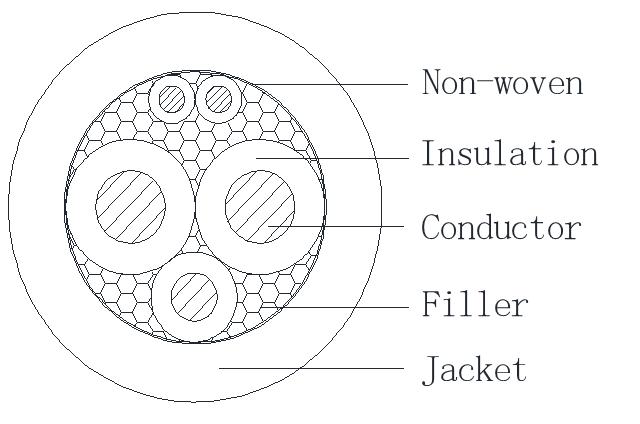

Construction:
Rated temperature:-40 ~ +105°C
Rated voltage:300V(EVJE,EVJT)
600V(EVE,EVT)
conductor:Stranded bare or tinned copper
Insulation material:TPE/PVC
Sheath material:TPE/PVC
Cold resistance, abrasion resistance, oil resistance, water resistance, UV resistance, pass the VW-1 flame test, excellent resistance to flame propagation.
Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.
Advantage of our factory:
1. More than 5 years of producing many kinds of electric wires and cables.
2. CCC/VDE/CE/CE/PES/REACH/ROSH Certificates.
3. Conductor can be used pure copper wrie or CCA cheap conductor.
4. MOQ 100 meters, good service.
5. OEM are welcome. We can also produce standard or non-standard wires and cables.

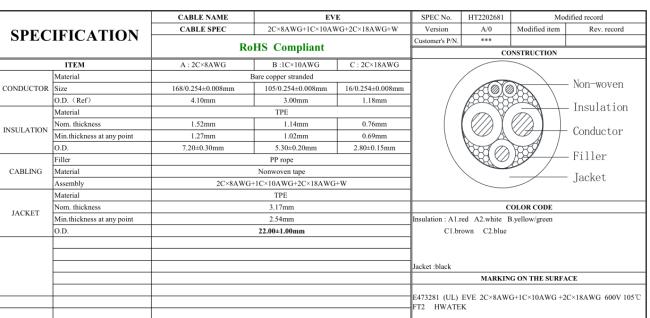

| SPECIFICATION | CABLE NAME | EVE | ||||
| CABLE SPEC | 2C×8AWG+1C×10AWG+2C×18AWG+W | |||||
| RoHS Compliant | ||||||
| ITEM | A : 2C×8AWG | B :1C×10AWG | C : 2C×18AWG | |||
| CONDUCTOR | Material | Bare copper stranded | ||||
| Size | 168/0.254±0.008mm | 105/0.254±0.008mm | 16/0.254±0.008mm | |||
| O.D.(Ref) | 4.10mm | 3.00mm | 1.18mm | |||
| INSULATION | Material | TPE | ||||
| Nom. thickness | 1.52mm | 1.14mm | 0.76mm | |||
| Min.thickness at any point | 1.27mm | 1.02mm | 0.69mm | |||
| O.D. | 7.20±0.30mm | 5.30±0.20mm | 2.80±0.15mm | |||
| CABLING | Filler | PP rope | ||||
| Material | Nonwoven tape | |||||
| Assembly | 2C×8AWG+1C×10AWG+2C×18AWG+W | |||||
| JACKET | Material | TPE | ||||
| Nom. thickness | 3.17mm | |||||
| Min.thickness at any point | 2.54mm | |||||
| O.D. | 22.00±1.00mm | |||||
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
