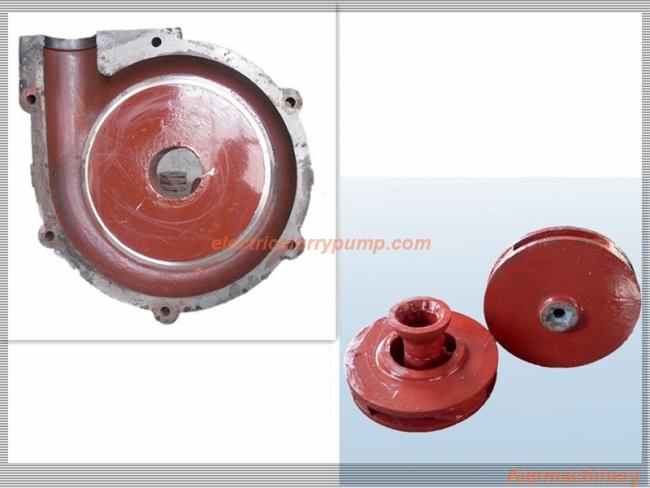

Red Stainless Steel Centrifugal Pump Parts Abrasion Resistance Easy Maintenance

Mining Equipment Centrifugal Slurry Pump Parts Substitutable for most standard slurry pump brands

OEM Centrifugal Industrial Slurry Pump Parts

Products Scope:

Casting,

Shaft,

Throat bush, Front liner,

Back liner, Wear plate,

Case, cover, Stuffing box,

Lantern restrictor, Plate bolt,

Volute, Shaft sleeve,

Cover plate liner, Frame plate liner,

Neck ring, Expeller ring,

Expeller, Bearing assembly,

Volute liner, Volute packing,

Bowl, Bearing cartridge,

Cover plate liner, Impeller,

Closed impeller, Open impeller

Features:

Bearing assembly &nd; a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

Liners &nd; easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomeric. Elastomeric seal rings back all liner joints.

The cover plate is produced using elastomer or hard metal,
such as natural rubber, high - chromium alloy, etc.
It has various sizes and styles, and the installation is very easy. Additionally, OEM design is accepted. This product is also named as slurry pump liner, and it is also an overflow component. It can form a pump chamber with throat bush and frame plate liner insert. Meanwhile, it is white iron with high-chromium alloy whose content as much as 27%, and it shows good resistance to abrasion

Casing &nd; Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

Impeller &nd; front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomeric impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

Throat bush &nd; wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

One-piece frame &nd; a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Our Services

- OEM Service

We also provide OEM service according to customer's any special requirements .

- Processing Service

-Can manufacture parts according to your drawings.

-Materials as follows:

1. High Chrome concentration alloy 1, Rockwell hardness HRC ≥60, high abrasion application.

2. High Chrome concentration alloy 2, Rockwell hardness HRC ≥58, high abrasion application .

3. High Chrome concentration alloy 3, both anti-abrasion and corrosion-resistant, can be used in PH ≥4 and cl- 20000 ppm environment.
