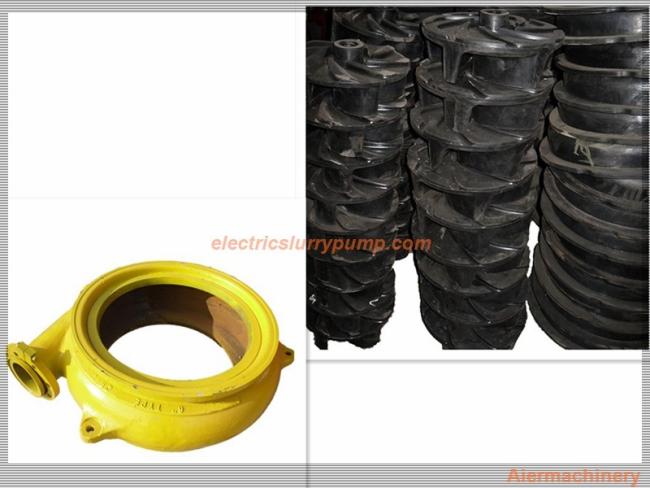

Rubber Lined Centrifugal Slurry Pump parts of Impeller, liner, seals

Price Negotiable

MOQ: 1

Delivery Time: 20-40 DAYS

Brand: Aier

Product Description

1. OEM slurry pump part codes

Here we list some OEM part codes for reference:

Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...

Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...

2. Frame & Bearing Assembly types

Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.

Slurry Pump Part Material

Part Name	Material	Specification	HRC	Application	OEM Code
Liners & Impeller	Metal	AB27: 23%-30% chrome white iron	≥56	Used for higher wear condition with pH between 5 and 12	A05
		AB15: 14%-18% chrome white iron	≥59	Used for higher wear condition	A07
		AB29: 27%-29% chrome white iron	43	Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4	A49
		AB33: 33%-37% chrome white iron		It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.	A33
	Rubber				R08
					R26
					R33

Expeller & expeller ring	Metal	B27: 23%-30% chrome white iron	≥56	Used for higher wear condition with pH between 5 and 12	A05
Expeller & expeller ring	Metal	Grey iron			G01
Stuffing Box	Metal	AB27: 23%-30% chrome white iron	≥56	Used for higher wear condition with pH between 5 and 12	A05
Stuffing Box	Metal	Grey iron			G01
Frame/Cover plate, bearing house & base	Metal	Grey iron			G01
Frame/Cover plate, bearing house & base	Metal	Ductile iron			D21
Shaft	Metal	Carbon steel			E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt	Stainless steel	4Cr13			C21
		304 SS			C22
		316 SS			C23
Joint rings & seals	Rubber	Butyl			S21
		EPDM rubber			S01
		Nitrile			S10
		Hypalon			S31
		Neoprene			S44/S42
		Viton			S50
