IC Card Prepaid Gas Meter G1.6 / G2.5 / G4 With Aluminum Body Case
Price:
Negotiated
MOQ:
1 pcs
Delivery Time:
20-30 Working Days
Brand:
Radarking
Product Description
IC Card Gas Electric Smart Meter G1.6 / G2.5 / G4 With Aluminum Body Case
Product Description:
IC card diaphragm gas meter is a new self-developed domestic prepaid gas flow meter. It is a positive displacement ype of meter which consists of basic diaphragm gas meter and IC card prepaid control system.
Specification:
| Parameters | Model | ||
| RDK-G1.6 | RDK-G2.5 | RDK-G4.0 | |
| Maximum flow-rate(m3/h) | 2.5 | 4.0 | 6.0 |
| Minimum flow-rate(m3/h) | 0.016 | 0.025 | 0.04 |
| Maximum starting flow rate(dm3/h) | 3 | 5 | 5 |
| Maximum working pressure(kPa) | 30 | ||
| Class of accuracy | 1.5 Class | ||
| Basic error limit | +-3%(qmin<=q<qt); +-1.5%(qt<=q<=qmax) | ||
| Pressure loss(Pa) | Input 1.5 Pmax about 3 minutes, it doesn't leak. | ||
| Airport ability | -10~+40 | ||
| Operation temperature | M30*2 | ||
| Connector screw of inlet and outlet(mm) | 130 | ||
| Weight(kg) | 1.9(2.1) | 2.2(2.2) | 2.7 |
| Outline dimensions(mm) L* W* H | 168*139*222 | 172*152*227 | 192*172*259 |
| Method of power supply | 4PCS 5# exterior alkali battery | ||
| Static state current(uA) | <20 | ||
| Working current(mA) | <200 | ||

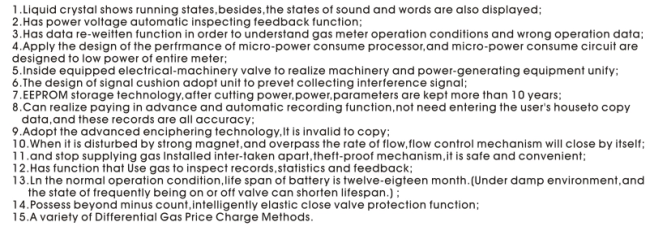

Features:
