Stainless Steel Display Cascade Fountain Nozzle Eco - Friendly Wind Resistance
ProEco Display Fountain Nozzles - Cascade Nozzle in stainless steel
Most popular effect used in commercial and architectural fountains!

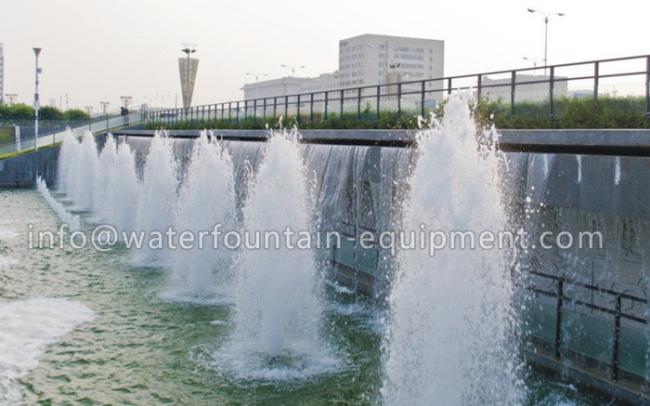

mounted on the top of the guide tube and flushed wth the water level. It can bring the water out of the pond to form giant water column with strong wind resistance. Therefore it can be widely used for the fountain in square or public places.
Product Description:
:* This is called Ice Tower nozzle or Cedar nozzle.
* Fountain nozzle sprays can be used in a wide variety of ways to achieve spectacular effects.
With beautiful shape and convenient installation, it can be adapted to a wide range of ponds and fountains.
* Easily installation, it only requires pipe and a submergible water pump.
* The performance of all fountain spray heads is directly affected by the GHP pumped through the fountain nozzle head. For a higher and wider spray pattern in your pond, a higher GPH pump is required.
TECHNICAL PARAMETER :
| name | model | Connection size | Pressure (Kpa) | Flow rate (m3/h) | Discharge Height (M) | Coverage diameter (m) | Net Weight (kg) | |
| Cascade nozzle | WCF15-B | DN15 | 1/2” | 40-200 | 2-4 | 1-4 | 0.2 | 147 |
| WCF20-B | DN20 | 3/4” | 40-200 | 2-4 | 1-4 | 0.2 | 147 | |
| WCF25-B | DN25 | 1” | 40-200 | 6-10 | 1-6 | 0.3 | 400 | |
| WCF40-B | DN40 | 1.5” | 50-330 | 8-20 | 1-8 | 0.6 | 880 | |
| WCF50-B | DN50 | 2” | 50-400 | 12-25 | 1-10 | 1.0 | 1120 | |
WATER FEATURE :
