Landscape Stainless Steel Water Pump , City Square Centrifugal Pond Pump 13m Head
China 380V landscape submersible stainless steel fountainwater pump

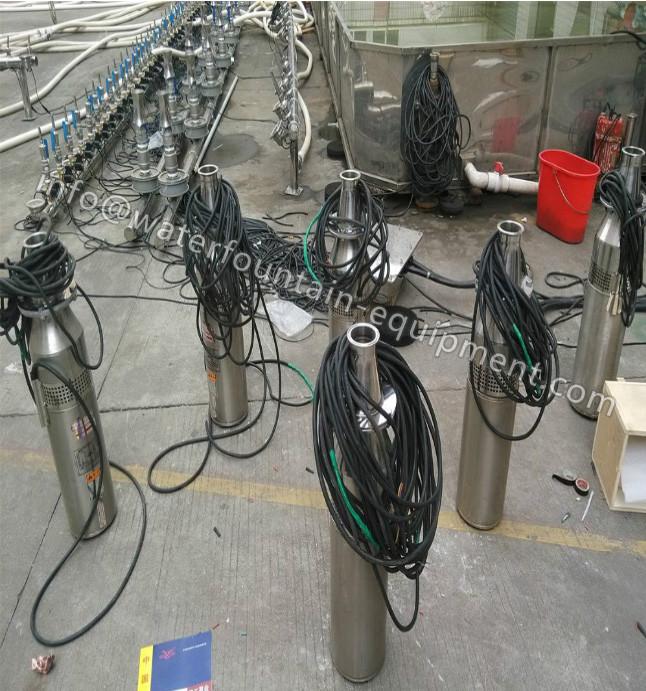

introduction of stainless steel water fountain pump :
QSPB water fountain pump is our newly developed product.
The pump motor is made of high quality material DR470 cold-rolled steel, evening to increase the number of turns of windings and diving line wire diameter, cable in three phase four wire type JHS fountain, special cables, impeller increases the loose prevention device;
Motor chamber adopts imported antirust enamel, through the above structure improvements make submersible pump inertia small, thus the response speed, with high performance special shaft bearing, to improve the insulation level, so as to meet the needs of the special music fountain, frequent starting.
Caution: Do not operate for long time when there is no water in the pump
TECHINCAL PARAMTER:
| No. | model | Flow rate | Head | Power | Outlet diameter | Speed | Product size | Flange | |||
| (m3/h) | (m) | (KW) | (mm) | (rpm) | (diaXH) mm | Outer dia.(mm) | Inner dia.(mm) | Hole centre distance | Bolt size and qty | ||
| 1 | QSPB15-14-1.1 | 15 | 14 | 1.1 | 50 | 2860 | 148X470 | 140 | 50 | 110 | 4- Φ11 |
| 2 | QSPB25-9-1.1 | 25 | 9 | 1.1 | 65 | 2860 | 140X465 | 156 | 65 | 135 | 4- Φ11 |
| 3 | QSPB40-6-1.1 | 40 | 6 | 1.1 | 70 | 2860 | 154X471 | 156 | 70 | 135 | 4- Φ11 |
| 4 | QSPB65-7-2.2 | 65 | 7 | 2.2 | 100 | 2860 | 158X550 | 170 | 100 | 150 | 4- Φ11 |
| 5 | QSPB25-17-2.2 | 25 | 17 | 2.2 | 65 | 2860 | 158X540 | 156 | 65 | 135 | 4- Φ11 |
| 6 | QSPB40-12-2.2 | 40 | 12 | 2.2 | 80 | 2860 | 180X555 | 180 | 80 | 160 | 4- Φ11 |
| 7 | QSPB65-10-3 | 65 | 10 | 3 | 100 | 2860 | 158X570 | 170 | 100 | 150 | 4- Φ11 |
| 8 | QSPB40-16-3 | 40 | 16 | 3 | 80 | 2860 | 158X575 | 180 | 80 | 160 | 4- Φ11 |
| 9 | QSPB100-9-4 | 100 | 9 | 4 | 90 | 2860 | 180X592 | 180 | 90 | 160 | 4- Φ11 |
| 10 | QSPB65-13-4 | 65 | 13 | 4 | 90 | 2860 | 180X592 | 180 | 90 | 160 | 4- Φ11 |
| 11 | QSPB40-21-4 | 40 | 21 | 4 | 80 | 2860 | 180X588 | 180 | 80 | 160 | 4- Φ11 |
| 12 | QSPB25-32-4 | 25 | 32 | 4 | 65 | 2860 | 203X578 | 165 | 65 | 145 | 4- Φ11 |
| 13 | QSP100-12-5.5 | 100 | 12 | 5.5 | 90 | 2860 | 180X642 | 180 | 90 | 160 | 4- Φ11 |
| 14 | QSP65-18-5.5 | 65 | 18 | 5.5 | 90 | 2860 | 203X589 | 180 | 90 | 160 | 4- Φ11 |
| 15 | QSP40-28-5.5 | 40 | 28 | 5.5 | 80 | 2860 | 203X585 | 180 | 80 | 160 | 4- Φ11 |
| 16 | QSP160-8-5.5 | 160 | 8 | 5.5 | 120 | 2860 | 203X597 | 210 | 120 | 190 | 4- Φ11 |
| 17 | QSP32-30-5.5 | 32 | 30 | 5.5 | 70 | 2860 | 180X736 | 165 | 70 | 134 | 4- Φ11 |
| 18 | QSP30-36-5.5 | 30 | 36 | 5.5 | 70 | 2860 | 180X736 | 165 | 70 | 134 | 4- Φ11 |
| 19 | QSP50-24-5.5 | 50 | 24 | 5.5 | 80 | 2860 | 203X585 | 180 | 80 | 160 | 4- Φ11 |
| 20 | QSP20-50-5.5 | 20 | 50 | 5.5 | 70 | 2860 | 180X850 | 165 | 70 | 134 | 4- Φ11 |
| 21 | QSP100-15-7.5 | 100 | 15 | 7.5 | 90 | 2860 | 180X672 | 180 | 90 | 160 | 4- Φ11 |
| 22 | QSP65-25-7.5 | 65 | 25 | 7.5 | 80 | 2860 | 203X642 | 180 | 80 | 160 | 4- Φ11 |
| 23 | QSP160-11-7.5 | 160 | 11 | 7.5 | 120 | 2860 | 203X654 | 210 | 120 | 190 | 4- Φ11 |
| 24 | QSP80-20-7.5 | 80 | 20 | 7.5 | 90 | 2860 | 203X657 | 180 | 90 | 160 | 4- Φ11 |
| 25 | QSP40-40-7.5 | 40 | 40 | 7.5 | 80 | 2860 | 180X798 | 180 | 80 | 160 | 4- Φ11 |
| 26 | QSP30-50-7.5 | 30 | 50 | 7.5 | 70 | 2860 | 180X880 | 165 | 70 | 134 | 4- Φ11 |
| 27 | QSP32-45-7.5 | 32 | 45 | 7.5 | 70 | 2860 | 180X880 | 165 | 70 | 134 | 4- Φ11 |
| 28 | QSP50-36-7.5 | 50 | 36 | 7.5 | 80 | 2860 | 180X798 | 180 | 80 | 160 | 4- Φ11 |
APPLICATION:
